Selector Lever Emergency Release

Selector lever emergency release 09G, 6 Speed A/T

Do not remove handle.

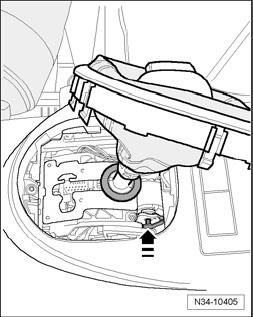

- Unclip shift cover and hold to the side.
- Operate brake or activate parking brake.





- Press on yellow plastic piece from right toward left.

Lever can now be shifted out of P position.

Handle, removing and installing

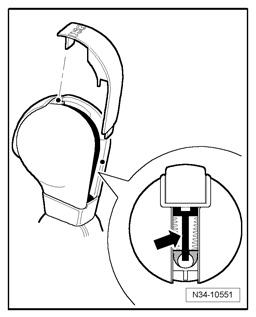

For all handles, there is the possibility that the button can be pressed into the handle. Never install handle with the button pressed in.





- Pull button out beyond its press point before removing.
- Secure button from being pressed in using a cable tie or wire.
- Unclip cover.





- Disengage handle.
- After installing, engage handle again, press plastic piece again downward under the handle.





- In new handles, remove transport protection device after disengaging.
- Disconnect connector from cover.





- Pull off handle upward.
- Press small lever for cable rod - arrow - again into groove before handle is installed.
- After installing, engage handle again, press plastic piece again downward under the handle.

Handle, removing and installing
For all handles, there is the possibility that the button can be pressed into the handle. Never install handle with the button pressed in.





- Pull button out beyond its press point before removing.
- Secure button from being pressed in using a cable tie or wire.
- Unclip cover.





- Disengage handle.
- After installing, engage handle again, press plastic piece again downward under the handle.





- In new handles, remove transport protection device after disengaging.
- Disconnect connector from cover.
- Pull off handle upward.
- After installing, engage handle again, press plastic piece again downward under the handle.
