Fluid Line/Hose: Service and Repair

Overview 09G, 6 Speed A/T





A - ATF lines on transmission
B - External ATF cooler
C - ATF lines
D - Auxiliary ATF cooler-

ATF lines on transmission





1 - ATF line
^ Always replace O-ring
^ 20 Nm

2 - ATF line
^ Always replace O-ring
^ 20 Nm

3 - Nut
^ 9 Nm

External ATF cooler





1 - Bolt
^ 8 Nm

2 - Nut
^ 9 Nm

3 - External ATF cooler

4 - Bolt
^ 9 Nm

5 - ATF line
^ Supply tube
^ Always replace O-ring

6 - ATF line
^ Return tube
^ Always replace O-ring

7 - Nut
^ 9 Nm

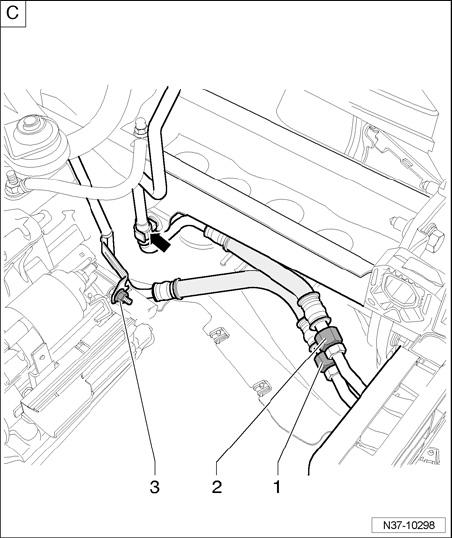

ATF lines





1 - ATF line
^ Return from auxiliary cooler
^ 25 Nm

2 - ATF line
^ Supply to auxiliary cooler
^ 25 Nm

3 - Nut
^ 9 Nm

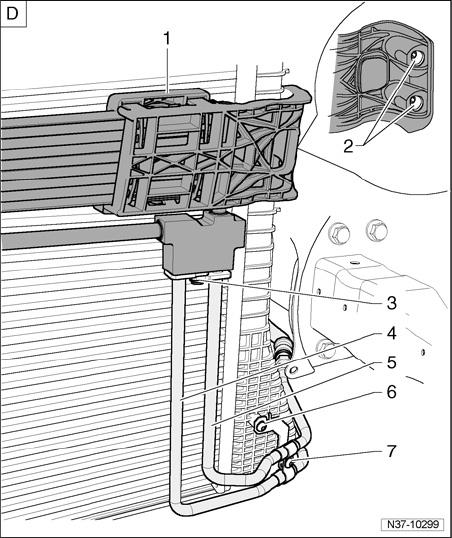

Auxiliary ATF cooler





1 - Auxiliary ATF cooler

2 - Bolt
^ 5 Nm

3 - Bolt
^ 9 Nm

4 - ATF line
^ Return tube
^ Always replace O-ring

5 - ATF line
^ Supply tube
^ Always replace O-ring

6 - Bolt
^ 5 Nm

7 - Bolt
^ 9 Nm
