Removal and Replacement

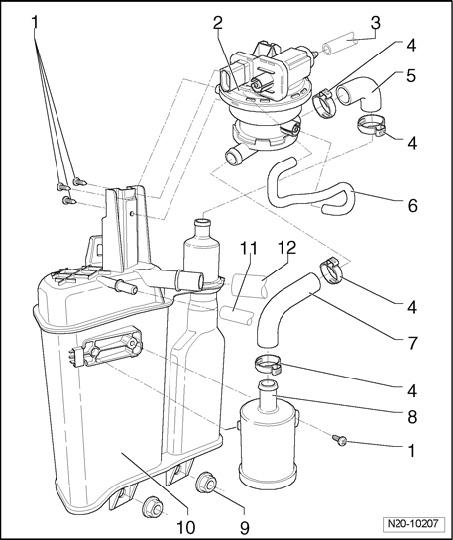

EVAP Canister System (Engine Code BPY), Assembly Overview







1 - Screws
2 - Leak detection pump (LDP) V144
- Component location: behind right rear wheel
- Vacuum supply, checking
3 - Vacuum line
4 - Clamp
5 - Connecting hose
- EVAP canister/ Leak Detection Pump (LDP) V144
6 - Vacuum hose
7 - Connecting hose
- Air filter/ Leak Detection Pump (LDP) V144
8 - Air filter housing
9 - 10 Nm
10 - EVAP canister
- Component location: In right rear wheel housing
11 - Vent line
- To Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- Clipped in at fuel tank
12 - Vent line
- From fuel tank
