Intake Manifold: Locations

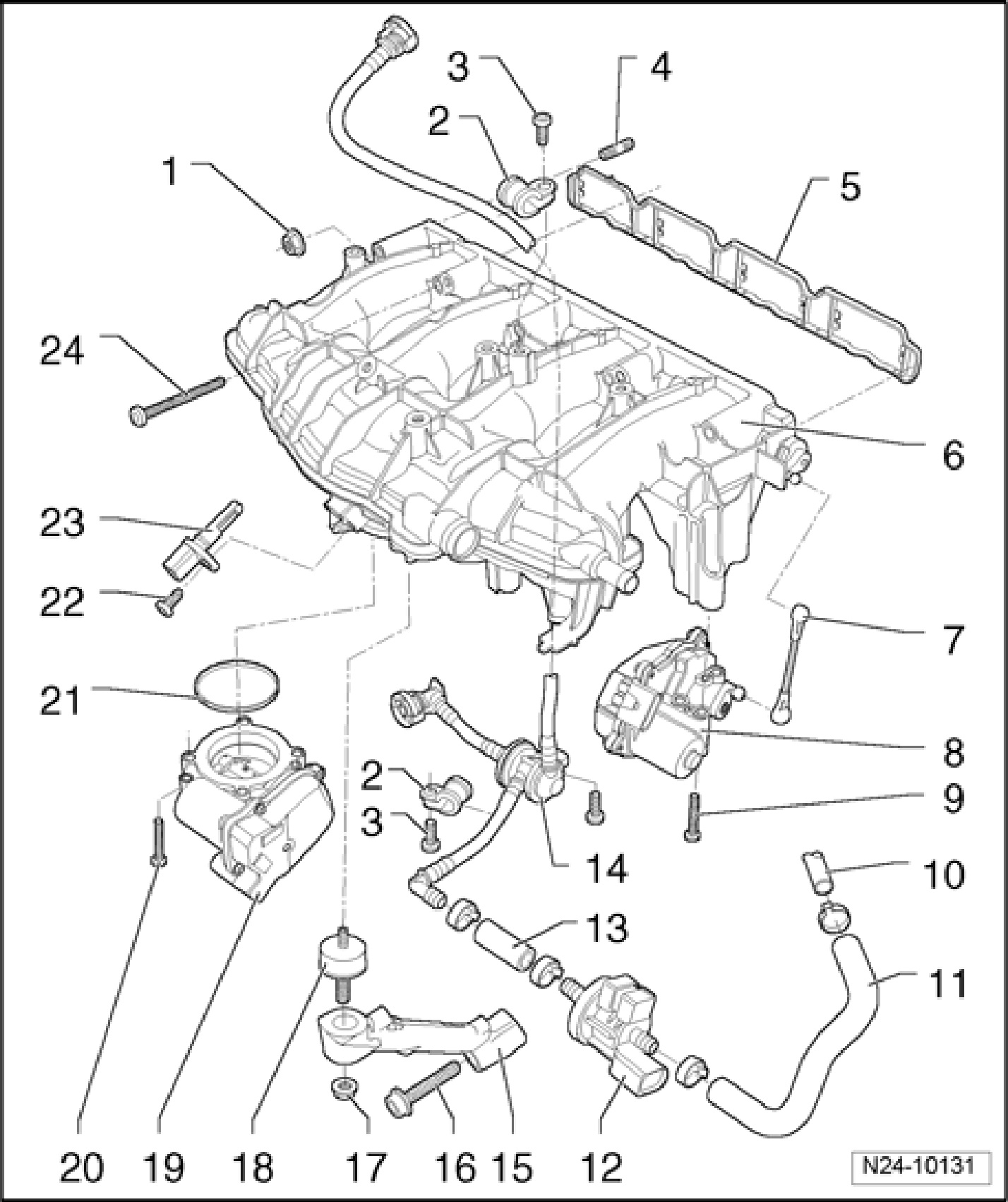

Intake Manifold, Assembly Overview







NOTE: Components marked with * are tested via On Board Diagnostic (OBD), Diagnostic mode 3: Check DTC memory.

1 - 10 Nm
2 - Screw clip
3 - 3 Nm
4 - Stud bolt, 10 Nm
5 - Gasket
- Replace
6 - Intake manifold
- With intake manifold flaps
7 - Coupling link
8 - Intake Flap Motor -V157-*
- Terminals are gold-plated
- 5-pin connector
- With Intake Manifold Runner Position Sensor -G336-*
- Checking Intake Manifold Runner Position Sensor -G336-
9 - 7 Nm
10 - Vent line
- Check for secure fitting
- From EVAP canister, item 11
11 - Vent line
- Check for secure fitting
12 - Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-*
- Installation position: Arrow points in direction of flow
- 2-pin connector
13 - Vent line
- Check for secure fitting
14 - Double check-valve
15 - Intake manifold support
16 - 23 Nm
17 - 10 Nm
18 - Bonded rubber bushing
19 - Throttle Valve Control Module -J338-*
- Terminals are gold-plated
- 6-pin connector
20 - 7 Nm
21 - Seal
- Replace if damaged
22 - 5 Nm
23 - Intake Air Temperature (IAT) sensor (G42)*
- Terminals are gold-plated
- 2-pin connector
24 - 10 Nm
