Measured Value (Data) Block, Reading (Function 08)
>>
Evaluating Measured Value Blocks
>>

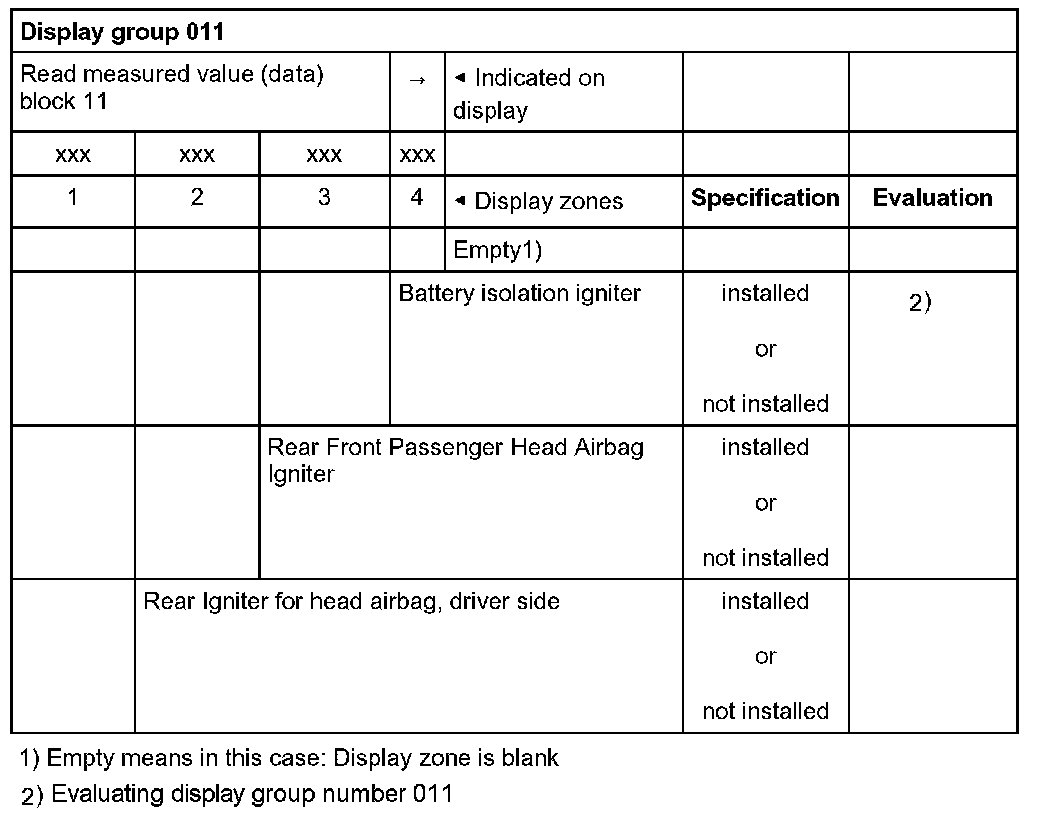

Display Group 011
Display Group 011
Display Group 011

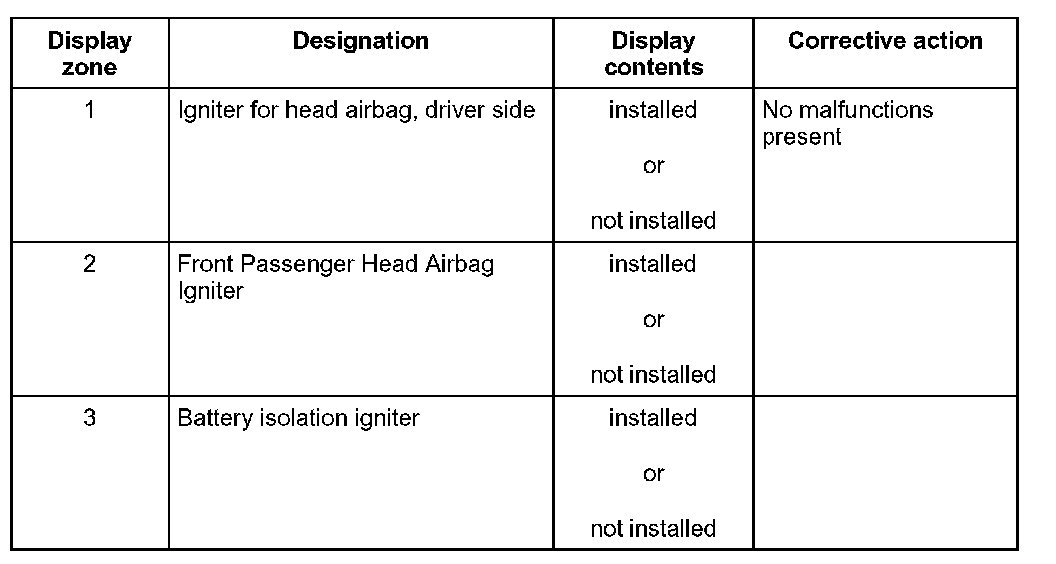

Evaluating display group number 011
