Oil Filter: Locations

2.0L FSI and TFSI, 2.5L





- oil filter housing stop -1-
- oil filter insert -2-
- oil filter housing sealing ring -3-
- oil filter housing center tube -4-

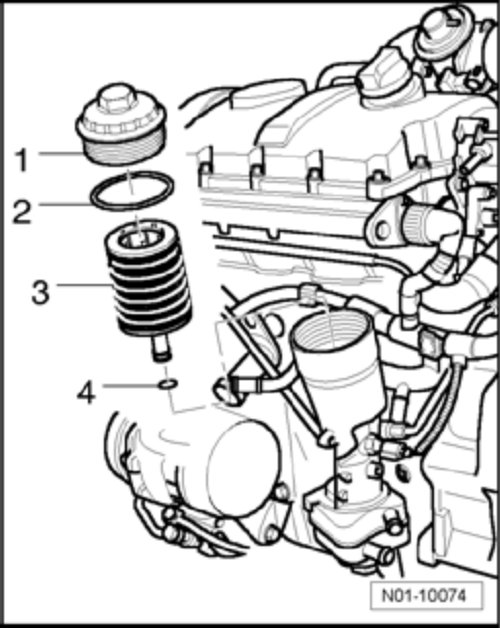

Oil filter (Diesel engines)



- oil filter -3-
- O-rings -2 and 4-.
