Parking Brake Lever: Service and Repair

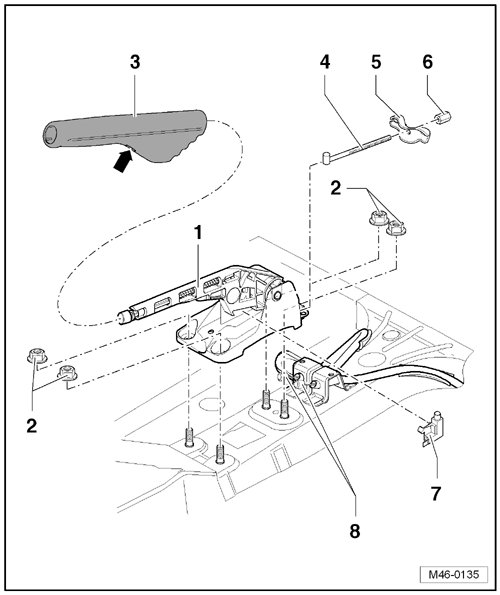

Parking Brake Lever Assembly Overview






1 Parking Brake Lever

• Remove center console before removing.

2 Nut, 20 Nm

3 Trim for Parking Brake Lever

• Pull off forward.

• Pry off release tab in rear bottom handle area - arrow - with a screwdriver.

• With a leather version, leather in catch area is cut.

4 Relay Rod

5 Compensator Bracket

6 Adjustment Nut

• Adjusting parking brake, refer to => [ Parking Brake, Adjusting ] Service and Repair.

7 Parking Brake Switch

8 Parking Brake Cables

• Removal and installation, through MY 2007, refer to => [ Parking Brake Cable, through MY 2007 ] Service and Repair.

• Removal and installation, from MY 2008, refer to => [ Parking Brake Lever, from MY 2008 ] .
