Fixed Door Window With Window Guide - Assembly Overview

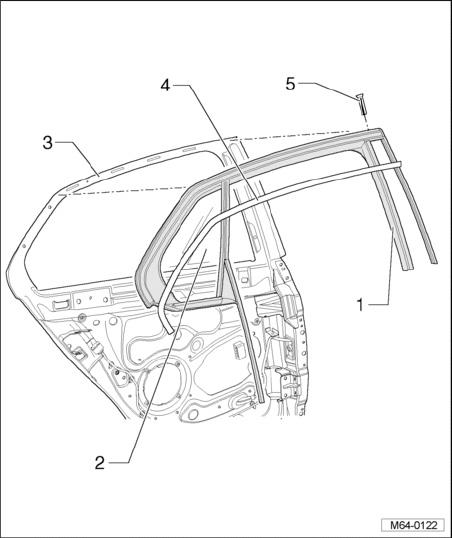

Fixed Door Window With Window Guide - Assembly Overview

NOTE: The description applies to the right side. The left side is derived accordingly from this.







1 - Window guide
- Component of fixed door window

2 - Fixed door window
- Component of window guide

3 - Window frame at inner door part
4 - Window guide trim molding
- Depending on equipment

5 - Expanding rivet
