Screen Separator Wall Bracket, Vehicles Without Panoramic Sunroof

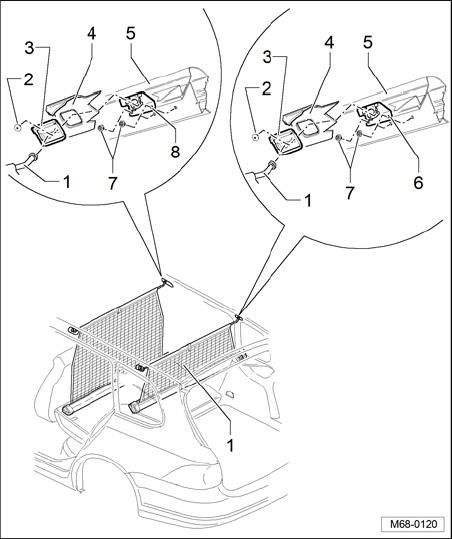

Screen Separator Wall Bracket, Vehicles Without Panoramic Sunroof, Removing And Installing







1 - Screen separator wall
2 - Bolt
- 2 Nm

3 - Lifting eye trim
4 - Molded headliner
5 - Roof
6 - Rear screen separator wall bracket
7 - Bolt
- 4.5 Nm

8 - Front screen separator wall bracket
