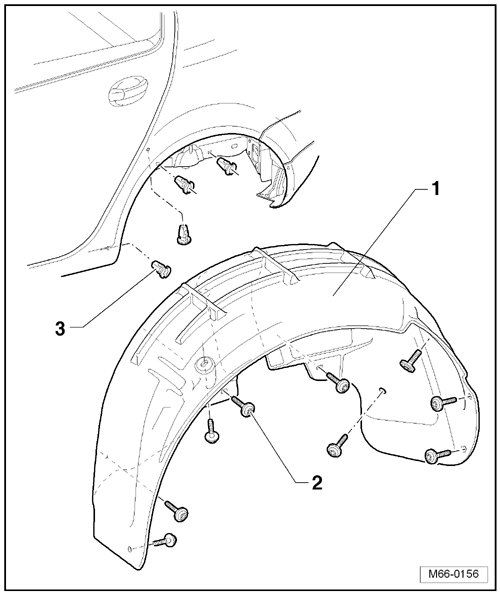

Rear Wheel Housing Liner Assembly Overview







Rear Wheel Housing Liner Assembly Overview






1 Wheel Housing Liner

• Material: PP/EPDM

2 Screw

• Qty. 9

• 2 Nm

3 Spreader Nut
