Differential Motor V253, Installing

Differential motor V253, installing

If a new Differential Motor is installed, observe the following:





^ Transfer Case Operating Unit E473 was already turned to "LOW" position with ignition on.
^ Transfer Case Operating Unit setting see (Fig. 1)
^ Transfer Case Operating Unit E473 was not turned to "LOW" position.
^ Transfer Case Operating Unit setting see (Fig. 2)

(Fig. 1)





^ The Transfer Case Operating Unit E473 is in "LOW" position.

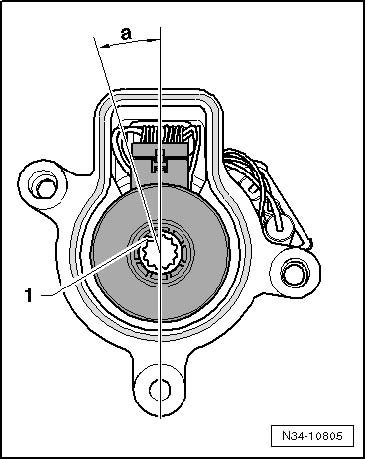

^ Shaft with interrupted tooth pattern - 1 - must be in - a - position.

"a = approx. 10 degrees"

- If necessary, set the interrupted tooth pattern - 1 - on shaft of differential motor to position shown in the illustration (e.g. using a screwdriver).

(Fig. 2)





^ The Transfer Case Operating Unit E473 is not in "LOW" position.

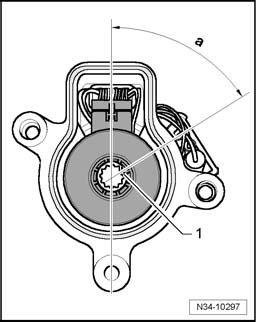

^ Shaft with interrupted tooth pattern - 1 - must be in - a - position.

"a = approx. 60 degrees"

- If necessary, set the interrupted tooth pattern - 1 - on shaft of differential motor to the position shown in the illustration (e.g. using a screwdriver).

Continued for all
- Make sure that O-ring that seals on transfer case makes contact in base of groove at the differential motor.
- Set differential motor on alignment sleeves - 2 - of transfer case.
- Ensure that the interrupted teeth on differential motor - arrow A - and on selector shaft/transfer case - arrow B - are aligned.





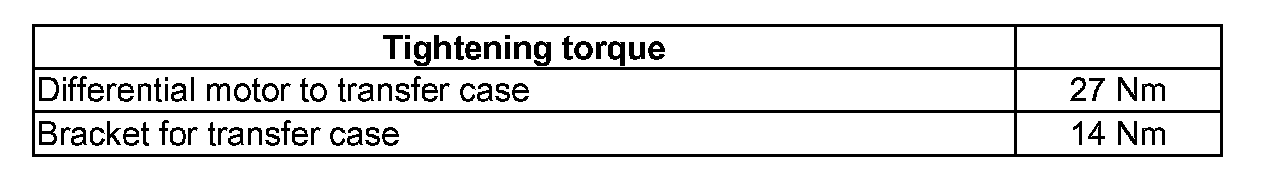

- Insert bolts - arrows - for differential motor and fasten.

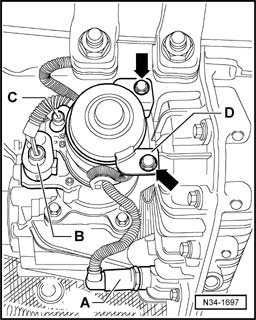

- Install bracket - D - - arrows -.
- Connect connectors - A -, - B - and - C -.
- If shield was fitted over differential motor, install it.
- Check gear oil level in transfer case.
