Gear Oil Level In Transfer Case, Checking

Gear oil level in transfer case, checking
Transmission oil specification see Code letters, transmission allocation, gear ratios, capacities.

Special tools, testers and auxiliary items required.





^ Torque wrench V.A.G. 1331.





- Remove sealing plug for gear oil inspection - arrow -.

Oil level is correct when the transfer case is filled up to lower edge of oil filler hole.

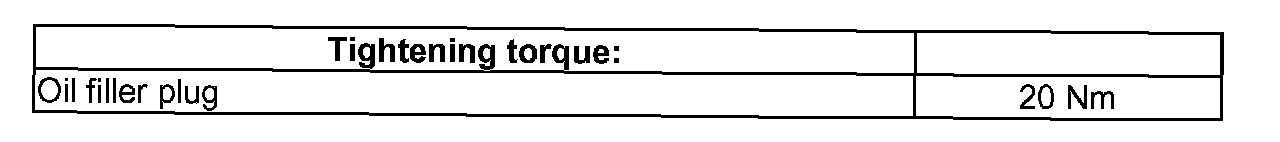

- Insert new plug - arrow - and fasten.

When initially filling transfer case:
- Remove plug - arrow -.
- Top off oil to lower edge of filler hole.
- Insert new plug - arrow - and fasten.
