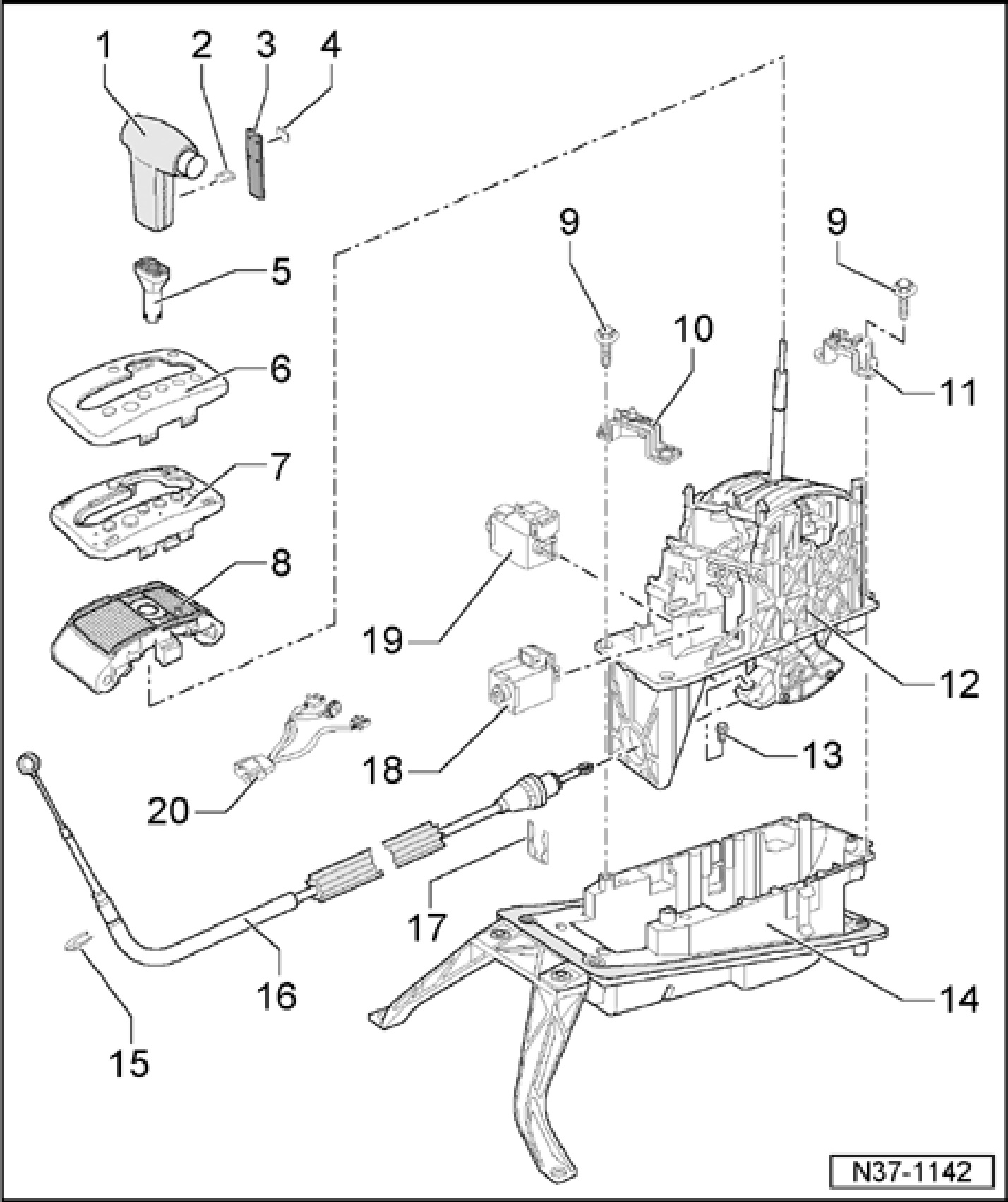

Selector Mechanism, Disassembling And Assembling







1. Selector lever handle
- Disengage selector lever in case of power outage
2. Bracket
3. Trim molding
4. Label
- Self adhering
5. Sleeve
6. Cover
- With selector scale
7. Printed circuit board
8. Cover strip
9. Securing bolts
- Qty. 4
10. Bracket
11. Bracket
12. Selector mechanism
- Can be removed upward
- With Shift Lock Solenoid -N110- and Ignition Switch Key Lock Solenoid -N376-
13. Clamping screw, 10 Nm
- Transmission selector lever cable, adjusting
14. Shift mechanism housing/cover
- Can only be removed downward
15. Locking washer
- Always replace
16. Selector lever cable
- Is removed together with the shift mechanism
- Checking and adjusting
17. Locking washer
- Always replace
18. Shift lock solenoid -N110-
19. Ignition Switch Key Lock Solenoid -N376-
- To remove, the small securing latch must be pressed to the side by hand
- To install, ensure the ball head is properly seated and then slide the magnet in until the latch engages audibly
20. Wire routing
