Audio System - Radio/CD Player Skips/Stops/Will Not Play

Group: 91

Number: 05-08

Date: December 6, 2005

Subject:
Radio, CD Player Functional Errors

Model(s):
Touareg (See Table) 2006 --> 7L_6D037266

Condition

Radio, CD player intermittently skips, stops or will not play.

Service

Replace radio during PDI under the following conditions:

^ Before VIN: 7L_6D037266

^ Vehicle must be prepped between December 2005 and January 31, 2006

^ With software level below HW07/SW16

Note:
Prior to replacing components, record all customer preset radio stations before radio removal.

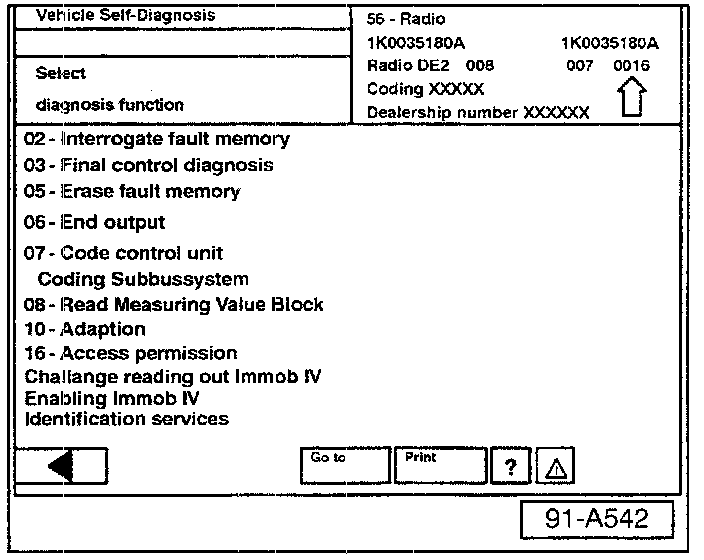

Similar screen appears:





- Determine radio software level using VAS Diagnostic tool (white arrow) or see sticker on radio.





The difference is software (see example shown).

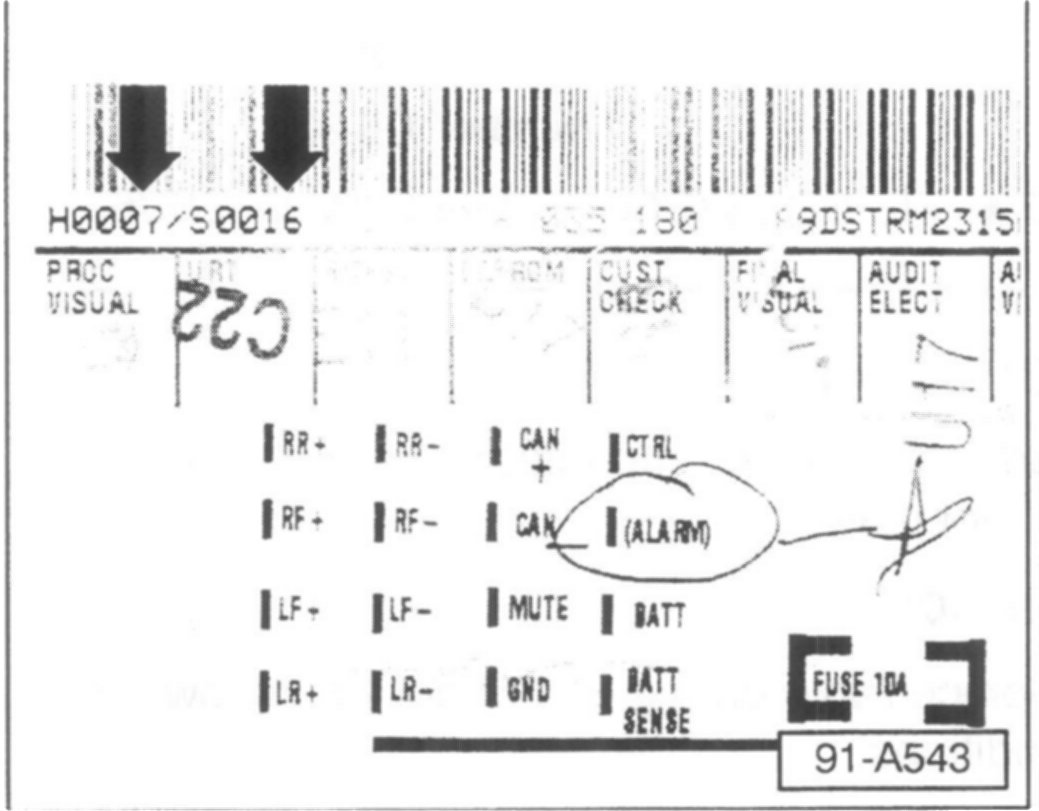

- Determining software level in-vehicle, check sticker on radio (black arrow).

If software level is Below HW07/SW16:

- Replace radio (see Repair Manual Electrical Equipment. Group 91 - Communication, Radio - Premium Sound System, removing and installing)

Note:
Replacing radio may lead to DTCs stored in several control modules. Erase all fault memories after radio installation.

Tip:

Part numbers listed in this bulletin are for reference only Always check with your Parts Dept. for the latest parts information.





When procedure applies to vehicles within the New Vehicle Limited Warranty, use the table.
