Lower Control Arm Bonded Rubber Bushing, Camber Adjusting Bolt Connection

Lower Control Arm Bonded Rubber Bushing, Camber Adjusting Bolt Connection

Special tools, testers and auxiliary items required

• Assembly tool (T10230)

• Hollow piston cylinder (VAS 6179)

• Hydraulic press (VAS 6178) with pressure head (T10205/13)

• Engine and transmission jack (VAG 1383 A)

• Torque wrench (VAG 1332)

• Socket (T10188)

Removing

CAUTION!
Before starting work, stabilizer bars must be coupled in vehicles with separable stabilizer bars. Otherwise, there is the danger of injury caused by unintentional separation.

- Remove lower control arm from subframe.

- Place a wood block - arrow - between lower control arm and subframe.

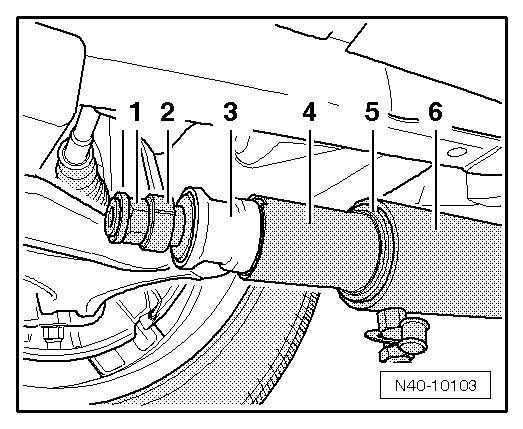

- Attach tools onto lower control arm, as shown in illustration.





1. Nut (T10230/2)

2. Press piece (T10230/4)

3. Lower control arm

4. Tube (T10230/5)

5. Thrust plate (T10230/7)

6. Hydraulic press (VAS 6178) with pressure head (T10205/13)

CAUTION!
Before removing, place engine and transmission jack (VAG 1383 A) with universal mount underneath cylinder, cylinder may fall down at end of pressing out procedure.

- Press out bonded rubber bushing.

Installing

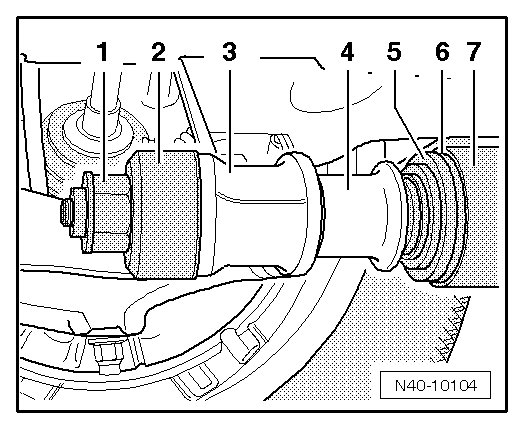

- Attach tools onto lower control arm, as shown in illustration.





1. Nut (T10230/2)

2. Press piece (T10230/8)

3. Lower control arm

4. Bonded rubber bushing

5. Press piece (T10230/6)

6. Thrust plate (T10230/7)

7. Hydraulic press (VAS 6178) with pressure head (T10205/13)

- Press in bonded rubber bushing until seated.

By doing this, core of bonded rubber bushing is pressed in by thrust piece (T10230/6) more than might be required. However, this is necessary so that bonded rubber bushing lip makes contact with control arm on outside. After loosening hydraulic cylinder (VAS 6178), bonded rubber bushing core settles into correct position.

- Install control arm to subframe.

- Perform vehicle alignment. Refer to --> [ Wheel Alignment ] Wheel Alignment.
