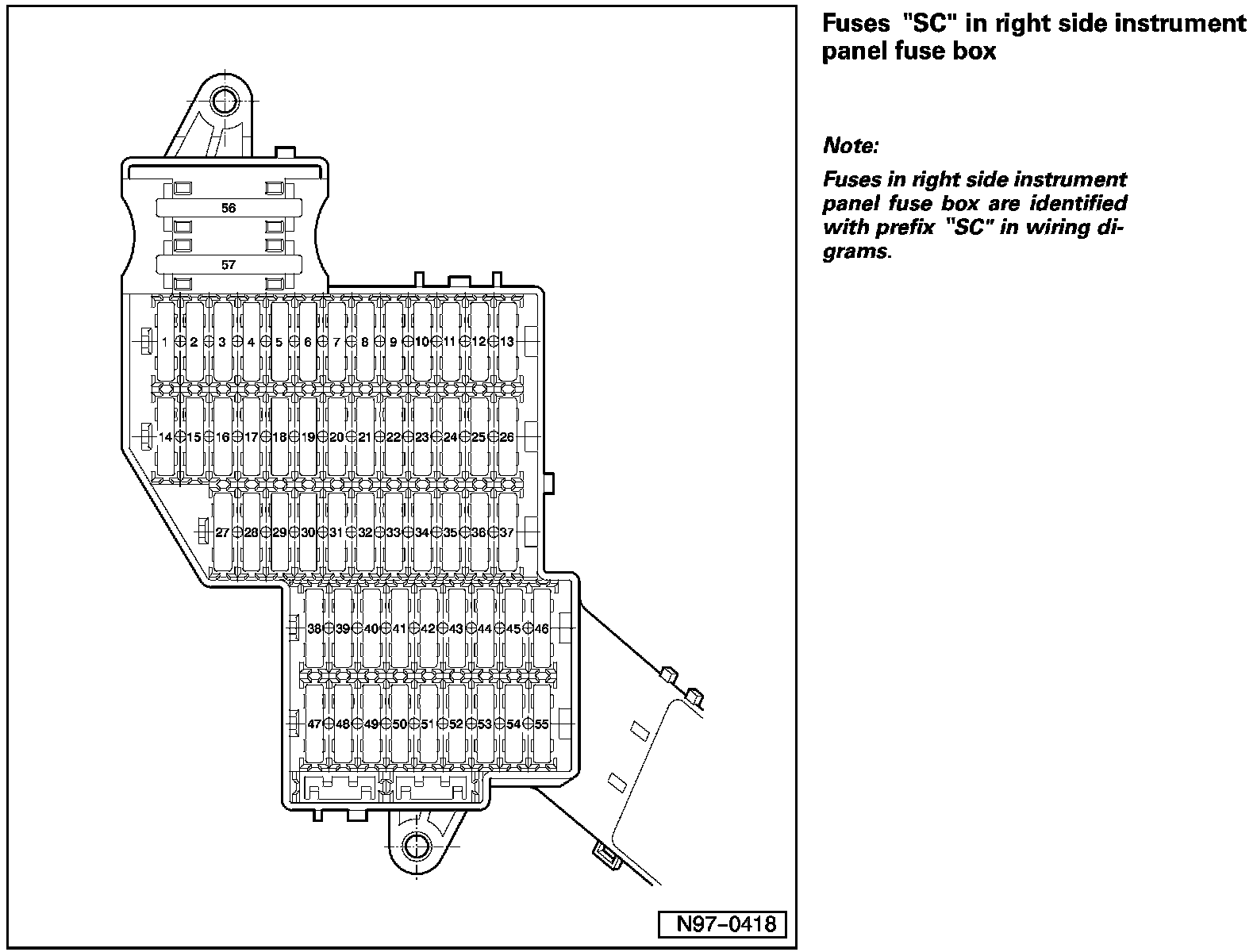

Fuses "SC" In Right Side Instrument Panel Fuse Box, Up To July 2006
Fuses "SC" In Right Side Instrument Panel Fuse Box, Up To July 2006

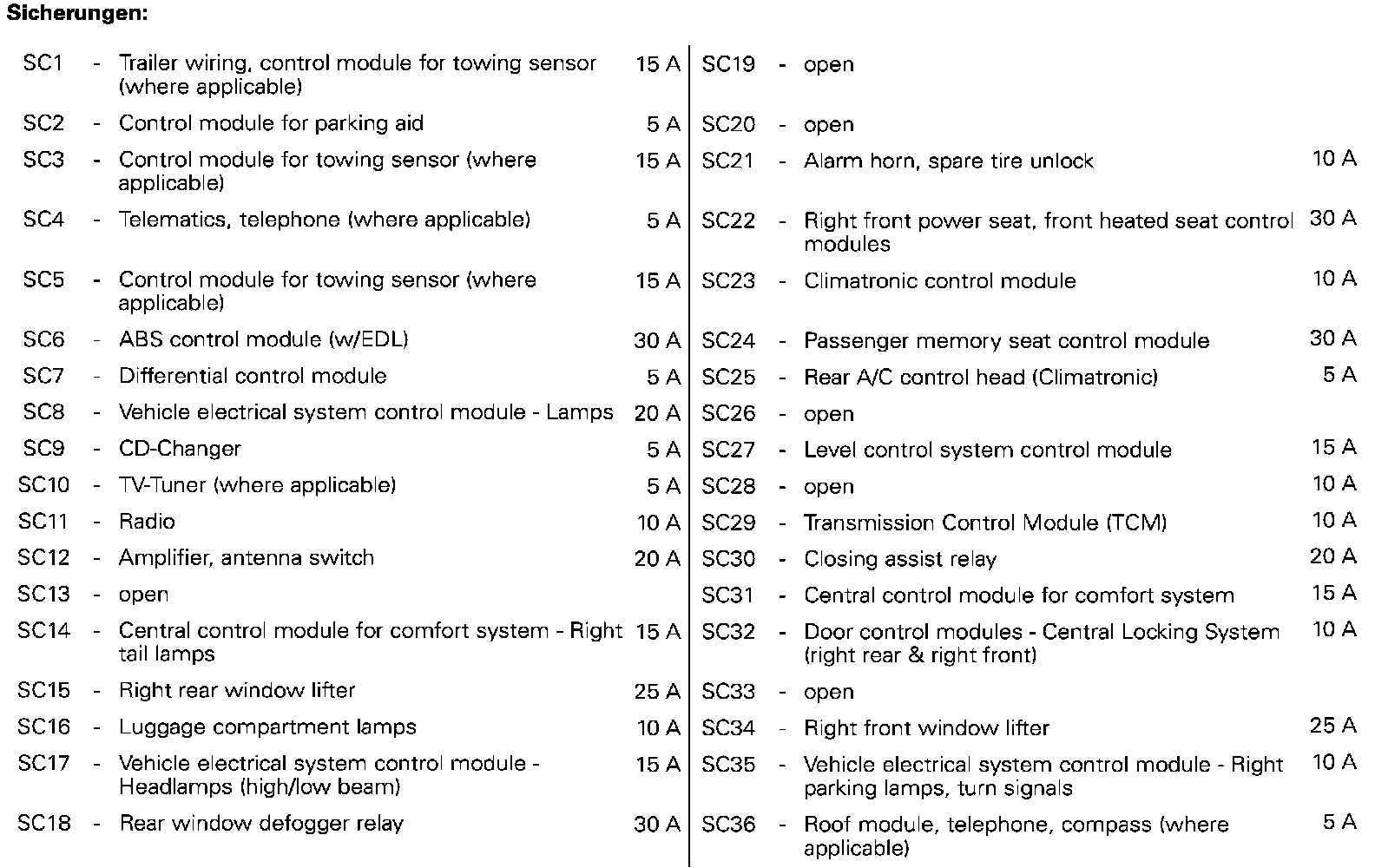

Fuses "SC" In Right Side Instrument Panel Fuse Box:

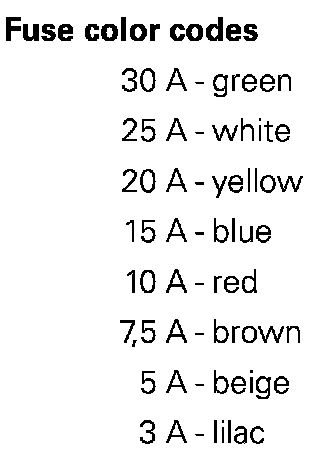

Fuse Color Codes:
Part 1:

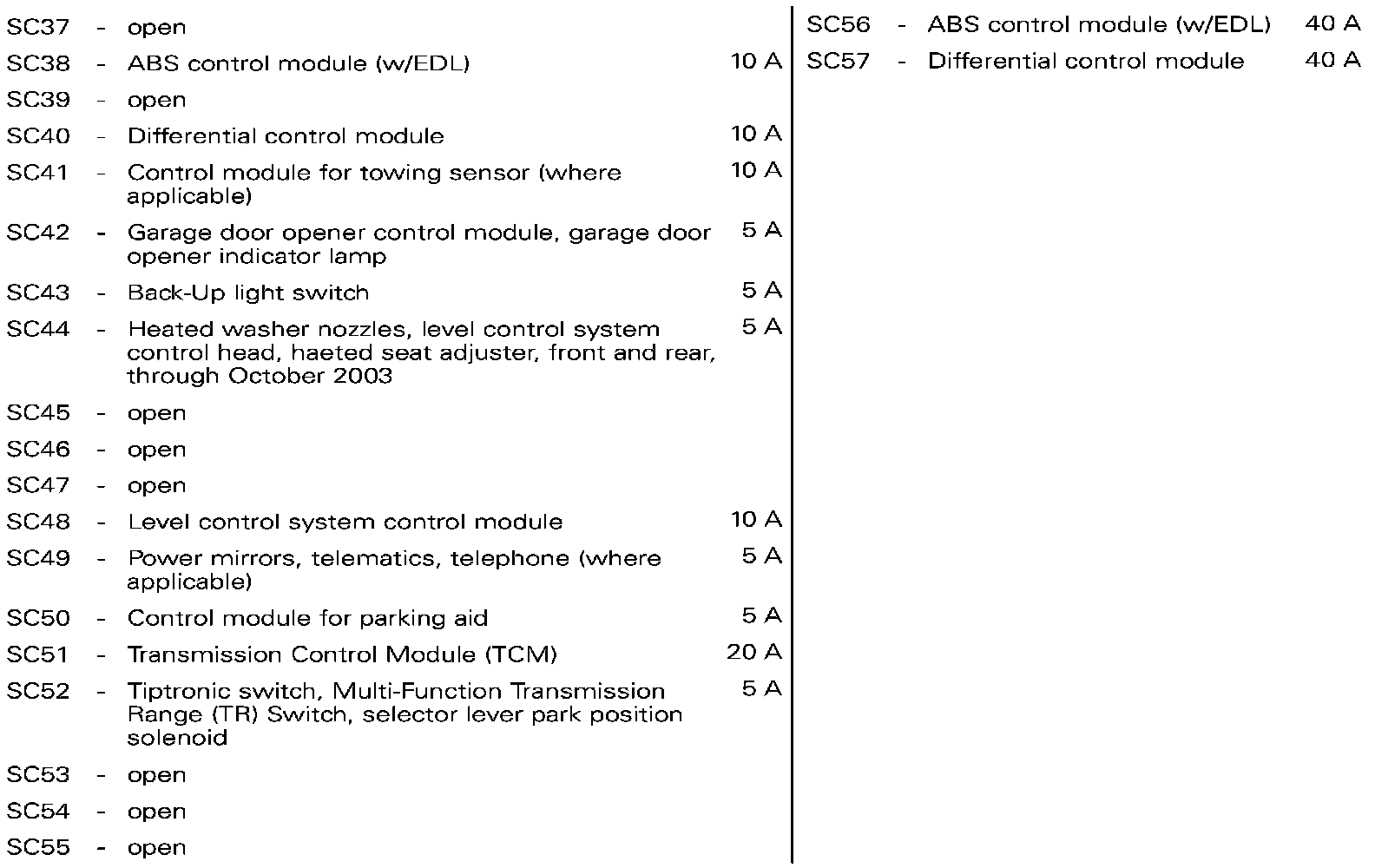

Part 2:
