Fuses "SB" In Left Side Instrument Panel Fuse Box, Up To July 2006
Fuses "SB" In Left Side Instrument Panel Fuse Box, Up To July 2006
Fuses "SB" In Left Side Instrument Panel Fuse Box (Part 1):

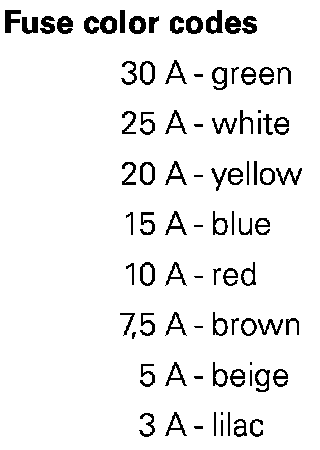

Fuse Color Codes:

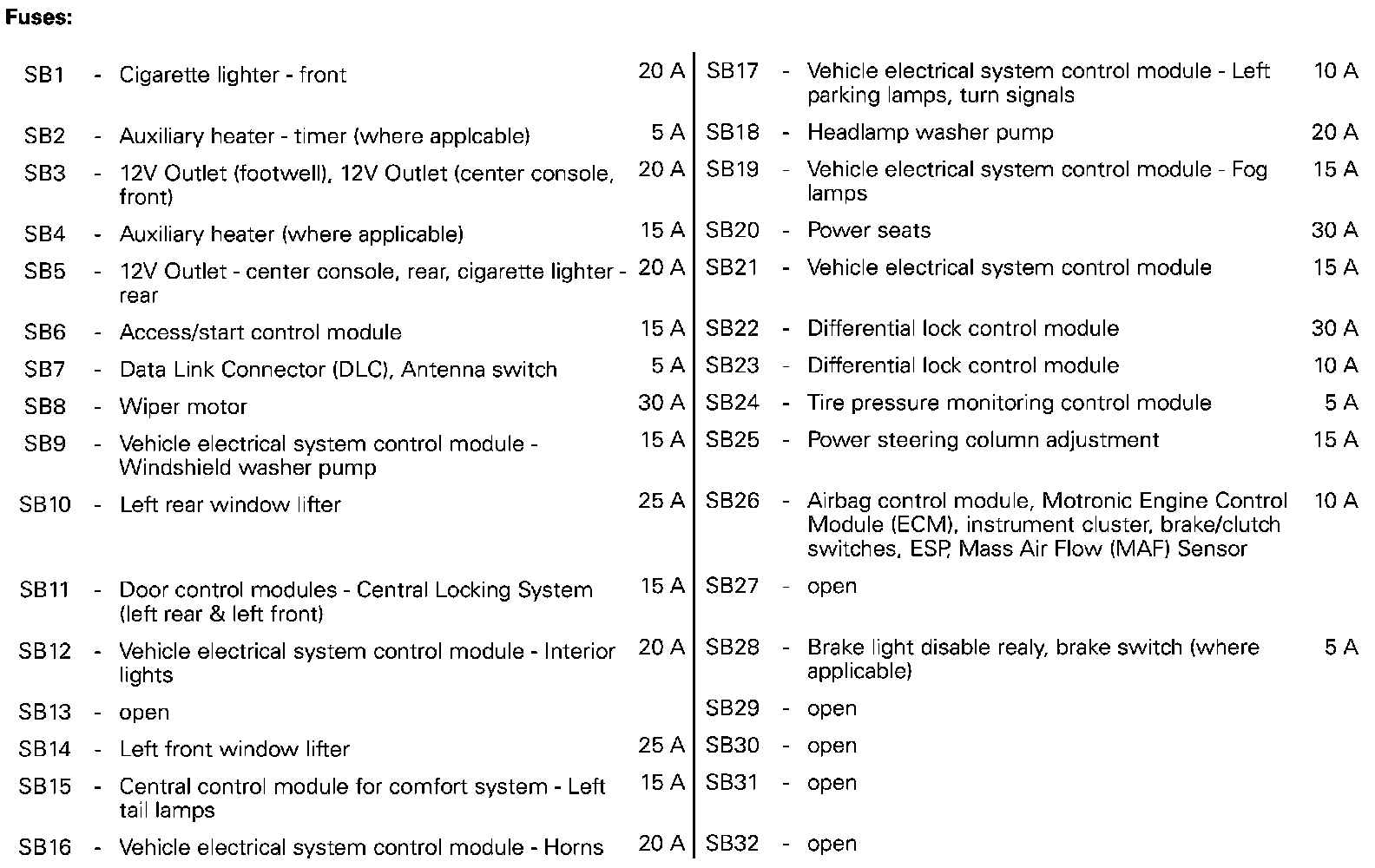

Fuses SB1 To SB32:

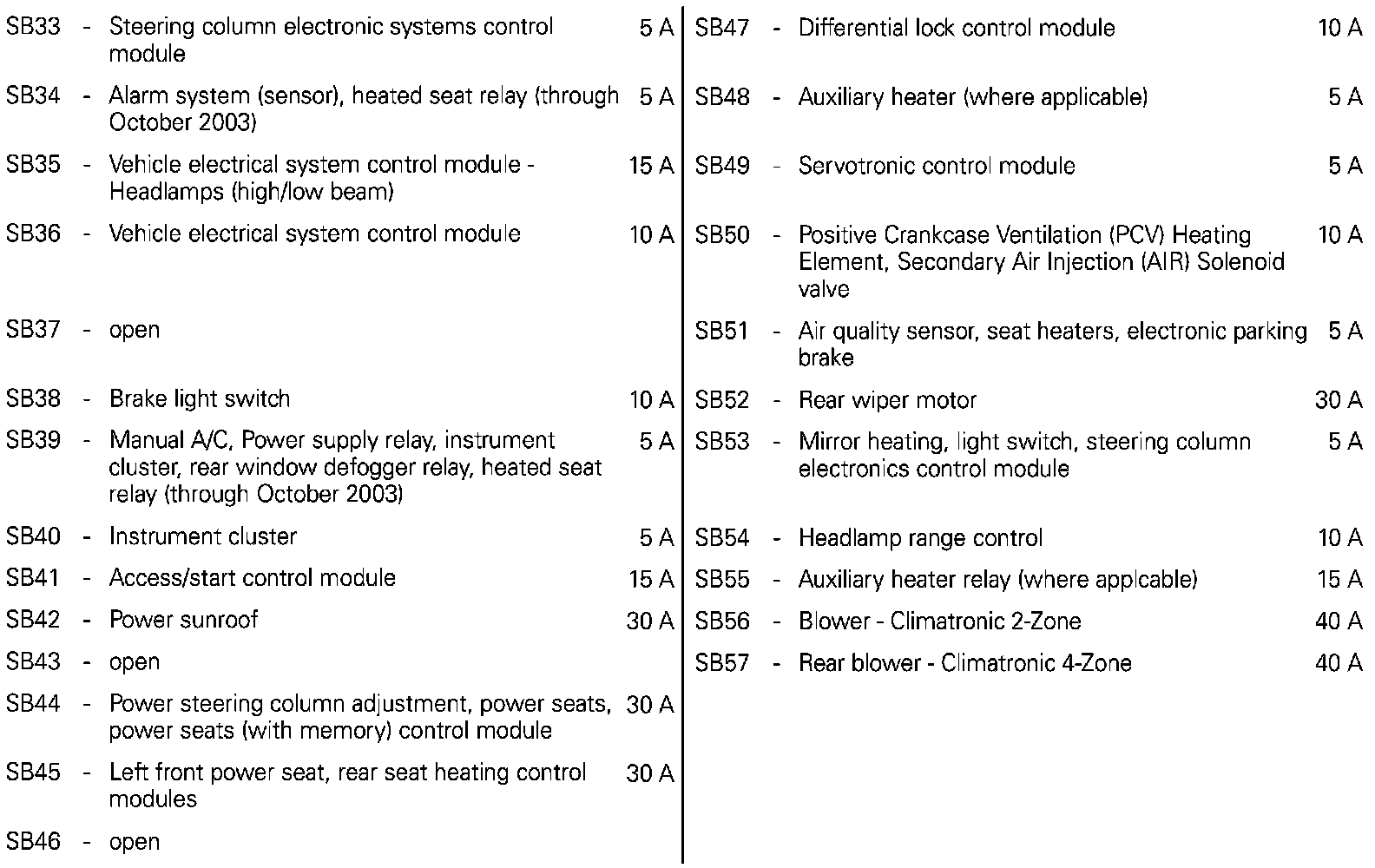

Fuses SB33 To SB57:
