Ignition Coil: Service and Repair

Ignition Coils with Power Output Stage

Special tools, testers and auxiliary items required

• Ignition Coil Puller (T40039)

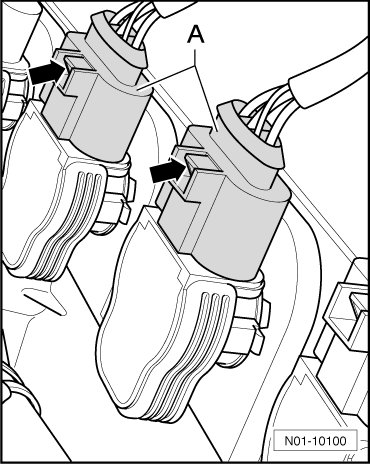

- Press in retaining tab of corresponding connector to be removed - A - in direction of - arrow -, and pull it off.





- For connectors of cylinders 5 through 8, first remove bracket - 1 - at bolts - arrows -.





- Push Ignition Coil Puller (T40039) onto ignition coil with power output stage, and pull it off in direction of - arrow -.





- To install, correctly position ignition coil with power output stage in spark plug shaft and press ignition coil with power output stage onto spark plug until stop.
