Fuel Filter: Locations

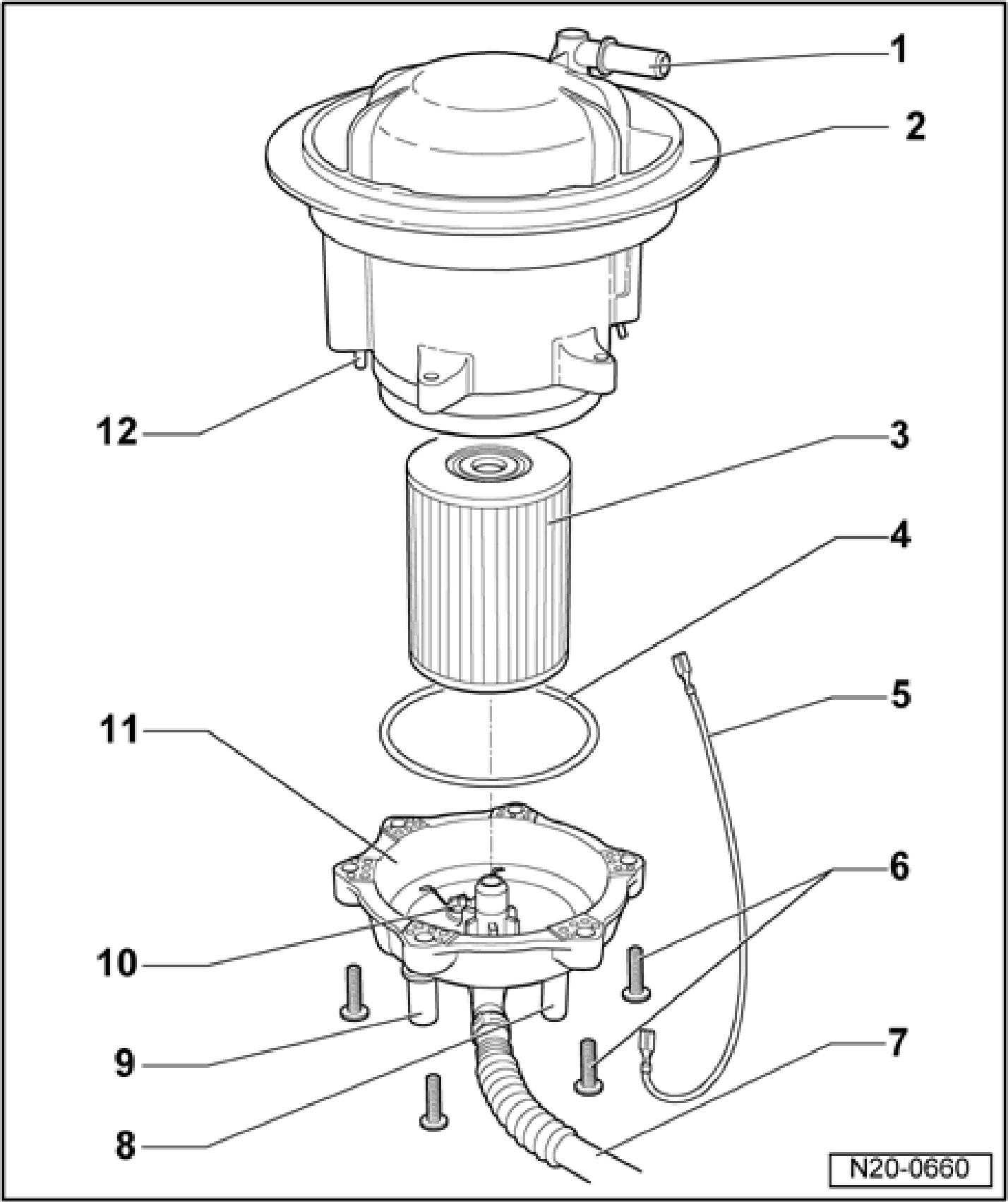

Fuel Filter, Assembly Overview







1 - Connection
- For breather line
2 - Flange
- Left side
- With fuel filter housing
- Note installation position on fuel tank
3 - Filter element
4 - Seal
- Replace
5 - Ground (GND) wire
6 - 10 Nm
7 - Supply line
- To fuel pressure regulator
8 - Connection
- Filter supply from left fuel pump unit
9 - Connection
- Filter supply from left fuel pump unit
10 - Ground (GND) connection
11 - Sealing cap
- For filter housing
12 - Locating pin
