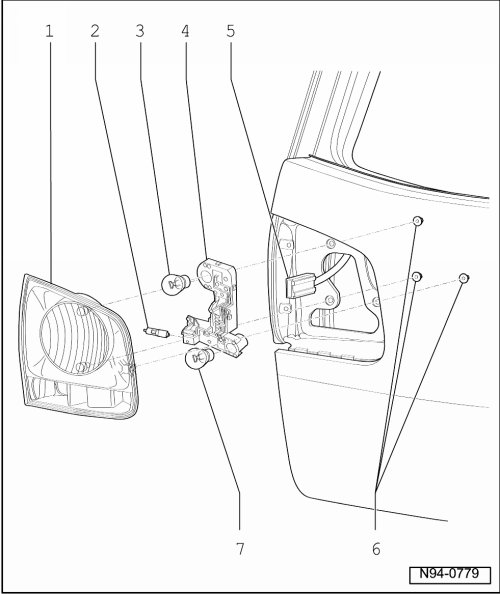

Rear Lid Tail Lamp Assembly Overview

Rear Lid Tail Lamp Assembly Overview





- Tightening specifications --> [ Tail Lamps ] Tail Lamps

1 - Housing

• Removing and installing --> [ Rear Lid Tail Lamps ] Tail Lamps

• Gap dimensions --> [ Tail Lamp Gap Dimensions ] Tail Lamp Gap Dimensions

2 - Left Back-Up Lamp (M16) and Right Back-Up Lamp (M17)

• 12V / H 21 W

• Checking --> [ Comfort System Central Control Module Output Diagnostic Test Mode ] Scan Tool Testing and Procedures

3 - Left Tail Lamp Lamp 2 (M49) and Right Tail Lamp Lamp 2 (M50)

• 12V / P 21 W / 4 W

• Checking --> [ Comfort System Central Control Module Output Diagnostic Test Mode ] Scan Tool Testing and Procedures

4 - Bulb holder

• Removing and installing --> [ Side Panel Tail Lamp Bulb Holder ] Tail Lamps

5 - Connector

• For tail lamp assembly in rear lid

6 - Nuts

• For tail lamp assembly in rear lid

7 - Left Rear Fog Lamp (L46) and Right Rear Fog Lamp (L47)

• 12V / P 21 W

• Checking --> [ Comfort System Central Control Module Output Diagnostic Test Mode ] Scan Tool Testing and Procedures
