Air Register: Service and Repair

Side Instrument Panel Vents

Removing

- Remove side cover from instrument panel.

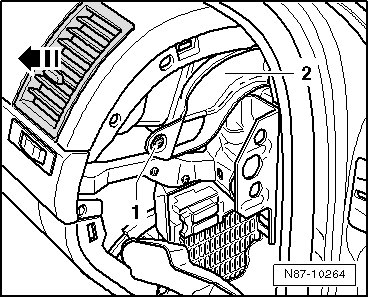

- Remove screw - 1 - and remove cover - 2 -.

- Press vents out of instrument panel - arrow -.

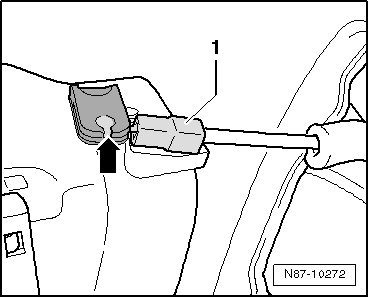

- Unclip retaining clip - 1 - and remove Bowden cable from actuator - arrow -.

Installation is carried out in the reverse order, when doing this note the following:

• Note Bowden cable routing.

• Bowden cable must not be installed kinked or twisted.
