13 - Engine, disassembling and assembling

Part II Cylinder block, assembly overview

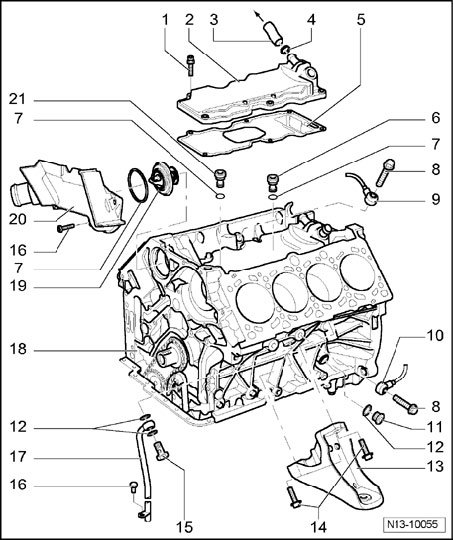

Part II Cylinder block, assembly overview:

1 -10 Nm
2 - Cover
^ With connection for crankcase ventilation

3 - Connecting hose
^ For crankcase ventilation

4 - Clamp
5 - Baffle plate
^ With gasket
^ Replace

6 - Oil return valve
^ For right cylinder head

7 - O-ring
^ Replace

8 - 20 Nm
^ Torque setting influences the function of knock sensor

9 - Knock Sensor (KS) 1 G61
10 Knock Sensor (KS) 2 G66
11 - Sealing plug, 35 Nm
12 - Seal
^ Replace

13 - Engine mount
^ Engine bracket and torque specifications

14 - 40 Nm plus an additional 1/4 turn (90°)
^ Replace

15 - Banjo bolt, 30 Nm
16 - 10 Nm
17 - Coolant drain tube
18 - Cylinder block
19 - Coolant thermostat
20 - Coolant thermostat housing
21 - Oil return valve
^ For left cylinder head





Torque specification for engine bracket
Torque specification for bolt - 1 - : 60 Nm.
Torque specification for nut - 2 - : 75 Nm.
