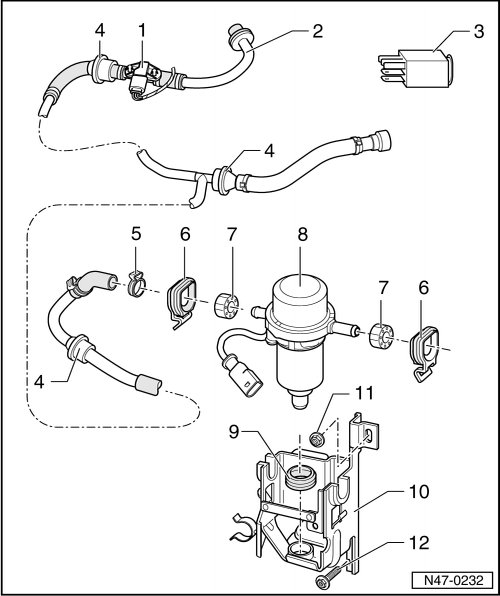

Brake System Vacuum Pump Assembly Overview

Brake System Vacuum Pump Assembly Overview

Only on vehicles with gas engines and automatic transmissions.





1 Brake booster pressure sensor (G294)

2 Vacuum hose

• To brake booster.

3 Brake booster relay (J569)

4 Check valve

Functional check, refer to --> [ Check Valve, Checking ] Check Valve, Checking.

5 Clamp

• Replace.

6 Clip

7 Buffer stop

8 Brake system vacuum pump (V192)

• Removing and installing, refer to --> [ Brake System Vacuum Pump ] Brake System Vacuum Pump.

9 Buffer stop

10 Bracket

• Allocation.

11 Nut

12 Bolt
