Parking Brake Control: Service and Repair

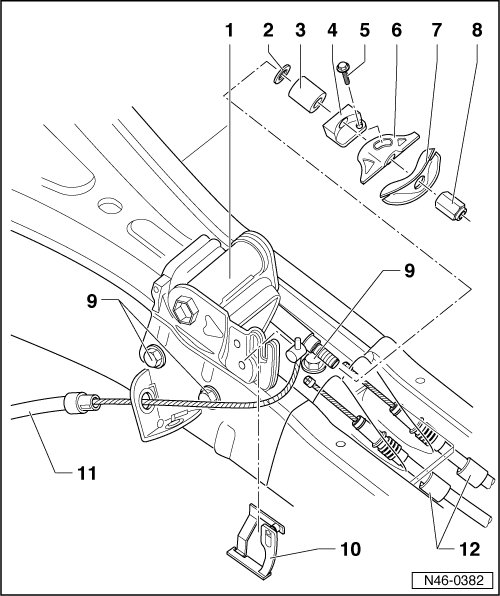

Transfer Module Assembly Overview





1 Transfer module

2 Washer

3 Buffer

4 Cable anchor bracket

5 Torx bolt

6 Cable anchor

7 Compensator bracket

8 Nut

9 Bolt, 23 Nm

10 Clip

11 Front brake cable

• Removing and installing, refer to --> [ Front Brake Cable ] Front Brake Cable.

12 Rear brake cable

• Removing and installing, refer to --> [ Rear Brake Cable ] Rear Brake Cable.
