Brake Caliper FN 3, Servicing

Brake caliper FN 3, servicing
^ Install complete repair kit when servicing.
^ Only use mineral spirits to clean brake parts.
^ Apply thin coat of Assembly Paste G 052 150 A2 to brake cylinders, pistons and seals.

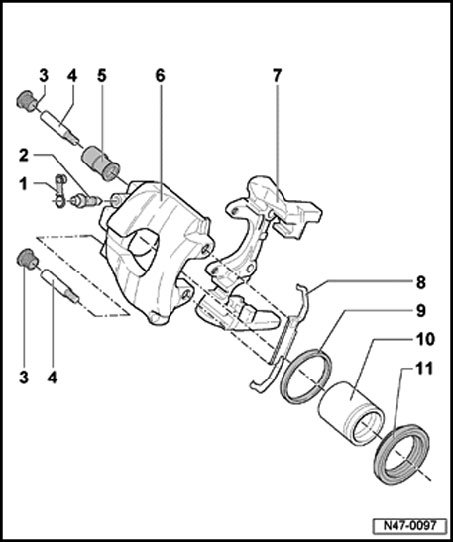

1 - Dust cap
^ Install onto bleeder valve
^ Secures brake pad wear indicator wiring

2 - Bleed valve, 12 Nm
^ Apply a thin coat of Assembly Paste G 052 150 A2 to the threads before screwing in.

3 - Caps
^ Insert in bushing

4 - Guide pins, 30 Nm
5 - Bushing
^ Insert in brake caliper

6 - Brake caliper
7 - Brake carrier
^ Bolt to brake caliper

8 - Retaining spring
^ Push under brake carrier and insert in both holes of brake caliper

9 - Sealing ring
10 - Pistons
11 - Protective cap
^ Do not damage when installing piston
