Brake Pedal Assembly Overview

Brake Pedal Assembly Overview

CAUTION!
The path of the brake pedal must not be shortened via extra floor mats.

• Lubricate all bearings and contact surfaces with grease (G 000 450 02).

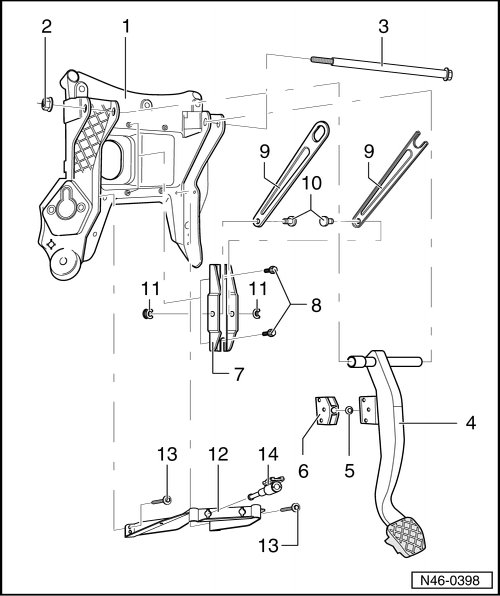

1 Mounting bracket for pedal assembly

2 Self-locking nut, 20 Nm

3 Pivot pin

4 Brake pedal

5 Ball socket

6 Mount

• For ball head of brake servo push rod.

7 Support

8 Bolt, 8 Nm

9 Crash bar

10 Pin

11 Locking washer

12 Bracket

13 Bolt, 8 Nm

14 Brake light switch (F) and brake pedal switch (F47).

• Removing and installing, refer to --> [ Brake Light Switch and Brake Pedal Switch ] Service and Repair.

• Vehicle from 11.06 do not have a brake light switch.
