Electrical/Electronic Components and Installation Locations

Electrical/electronic components and installation locations

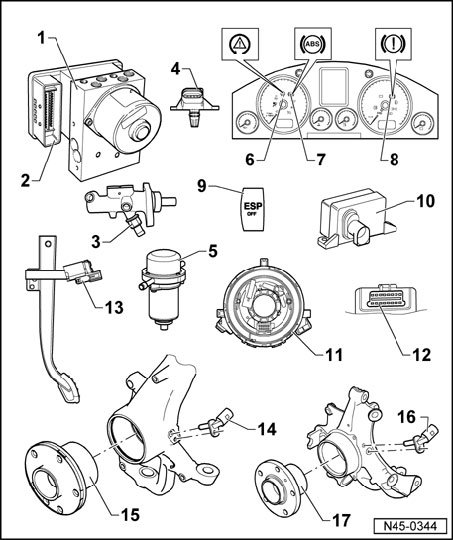

Electrical/electronic components and installation locations:

1 - ABS Hydraulic Unit N55
^ Component location: In plenum chamber, right side

The hydraulic unit consists of the components:
^ ABS Hydraulic Pump V64
^ Valve block (contains the in/outlet valves)
^ The ABS Hydraulic Pump V64 and valve block must not be separated from one another

2 - ABS Control Module (w/EDL) J104
^ Component location: At hydraulic unit on right side of plenum chamber.
^ Do not disconnect electrical connector before successfully completing On Board Diagnostic (OBD). Switch the ignition off before disconnecting the electrical connector.
