Strut Tower Brace: Service and Repair

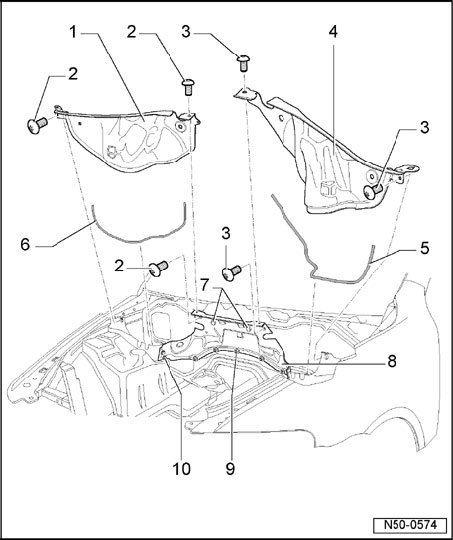

Plenum Chamber Bulkhead - Assembly Overview







1 - Right bulkhead
2 - Screw
- Qty. 3
- 8 Nm

3 - Screw
- Qty. 3
- 8 Nm

4 - Left bulkhead
5 - Left gasket
- When installing bulkhead, make sure gasket is seated correctly.

6 - Right gasket
- When installing bulkhead, make sure gasket is seated correctly.

7 - Screw
- Qty. 2
- 8 Nm

8 - Center bulkhead
9 - Hex nut
- Qty. 5
- 8 Nm

10 - Screw
- Qty. 4
- 8 Nm
