Rear Wheel Housing Liner Assembly Overview

Wheel Housing Liners

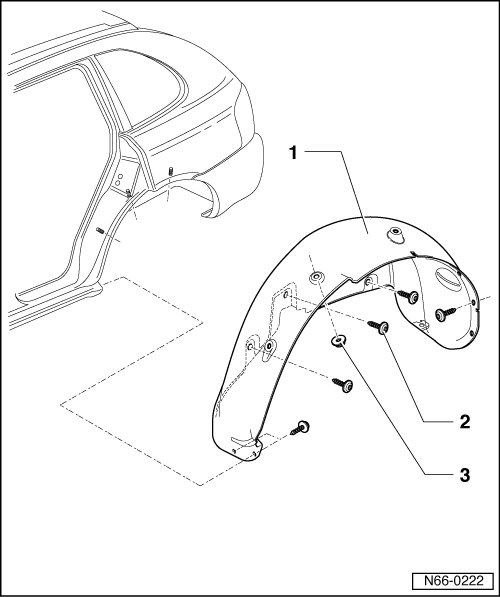

Rear Wheel Housing Liner Assembly Overview





1 Wheel housing liner

• Material - PP/EPDM

• Removing:

- Unbolt wheel.

- Remove bolts - 2 - (quantity: 9) and nuts - 3 - (quantity: 3) and remove wheel housing liner.

2 Bolt

• Quantity: 9

• 1.5 Nm

3 Hex nut

• Quantity: 3

• 1.5 Nm
