Secondary (Air) Pump Motor V101 System Components, Assembly Overview

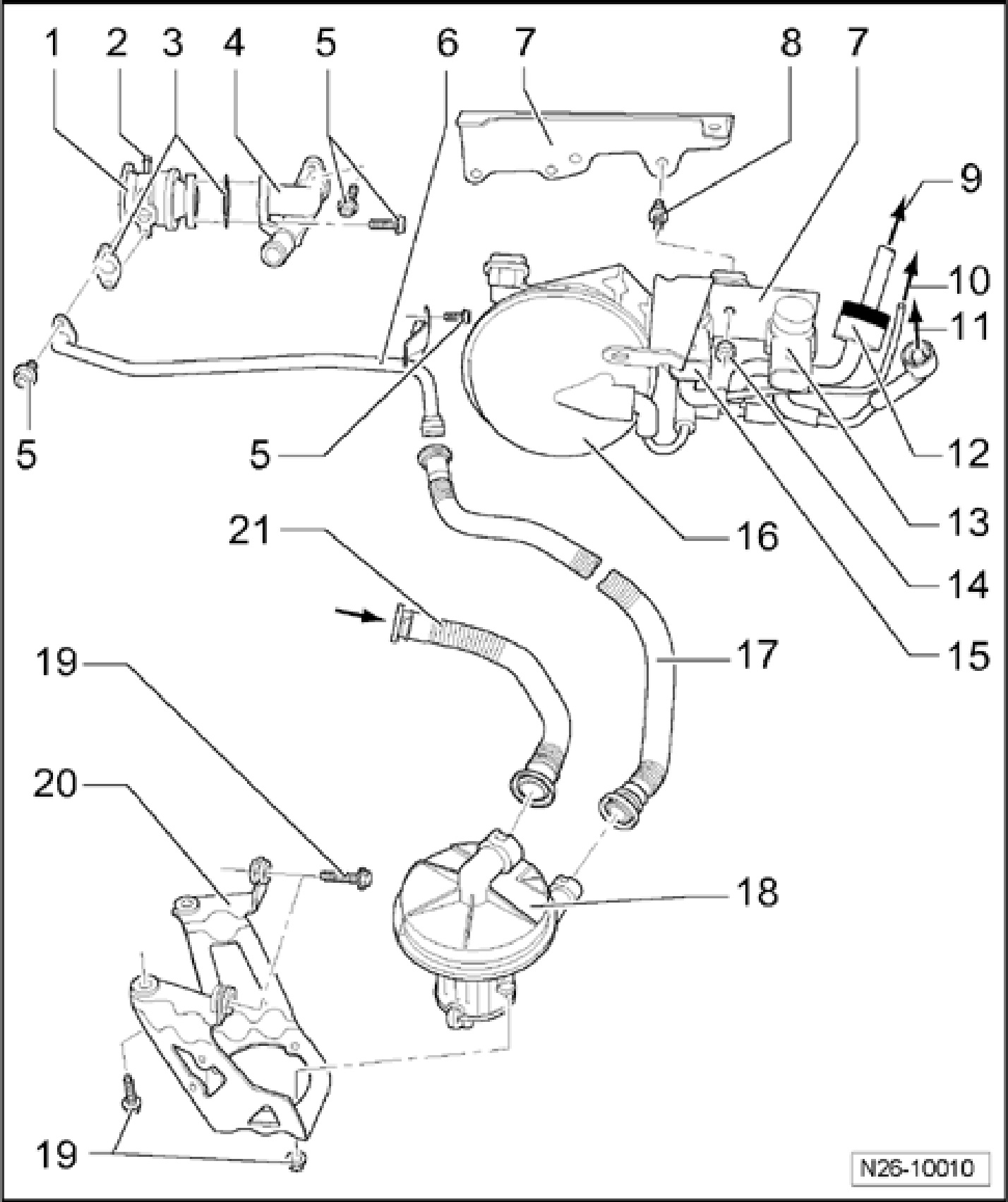

Secondary Air Injection (AIR) Pump Motor V101 System Components, Assembly Overview

NOTE: Secondary Air Injection (AIR) pump relay J299







1. Combi-valve
- Checking
2. Vacuum connection
3. Gasket
- Replace
4. Connection
5. 10 Nm
6. Pressure pipe
7. Bracket
8. Stud, 8 Nm
- Installed into intake manifold
9. To Intake manifold
10. To combi-valve
11. to vacuum actuator
- for variable intake manifold
12. Non-return valve
- Note installation position
- White connector faces vacuum reservoir
13. Intake Manifold Tuning (IMT) Valve N156
14. 8 Nm
15. Secondary air injection (AIR) solenoid valve N112
16. To vacuum reservoir
17. Pressure hose
- Ensure seated tightly
- Press together at front to release
18. Secondary Air Injection (AIR) Pump Motor V101
19. 10 Nm
20. Bracket
- For Secondary Air Injection (AIR) pump motor V101
21. Intake tube
- From upper air filter housing
- Ensure seated tightly
- Press together at front to release

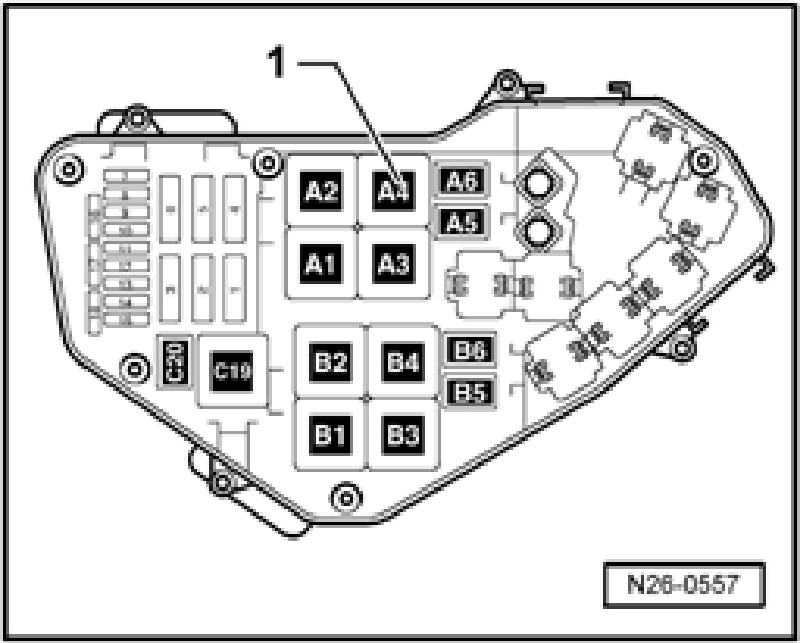

Secondary Air Injection (AIR) Pump Relay J299

NOTE:
- Secondary air injection pump relay J299 - 1 - is inserted in socket A4.
- If tools are necessary to pull relays or control modules out of the relay plate, first disconnect battery Ground (GND) strap.
