On Board Diagnostic (OBD), Technical Data

On Board Diagnostic (OBD), Technical Data

Control module identification
The control module version is displayed by selecting "Diagnostic mode 9: Vehicle information".

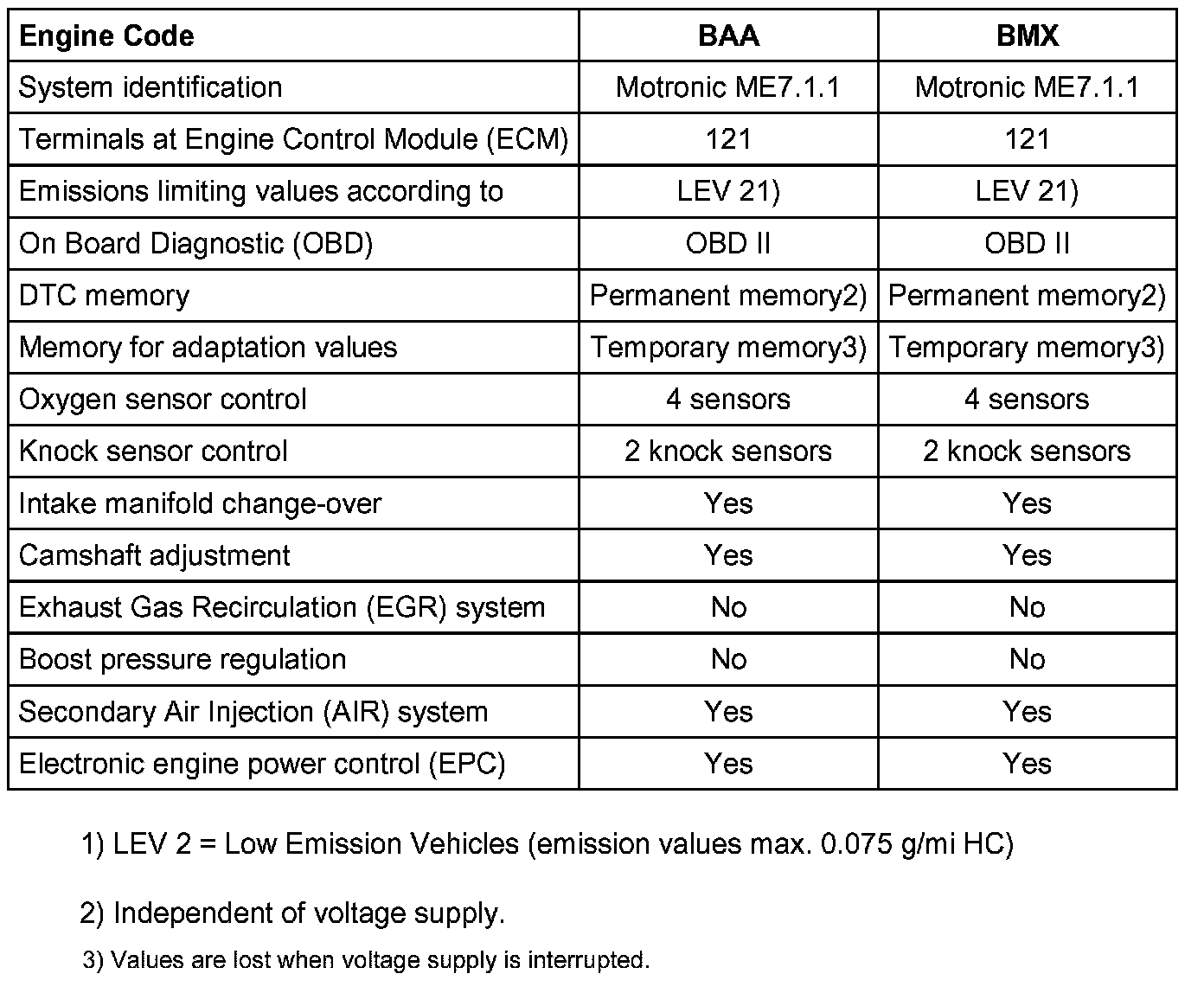

Engine Control Module (ECM) equipment







Equipment of Transmission Control Module (TCM)

Transmission code EXL, GLJ
System identification 09D
Terminals at Transmission Control
Module (TCM) 52
On Board Diagnostic (OBD) OBD II
DTC memory Permanent memory 1)

1) Independent of voltage supply.

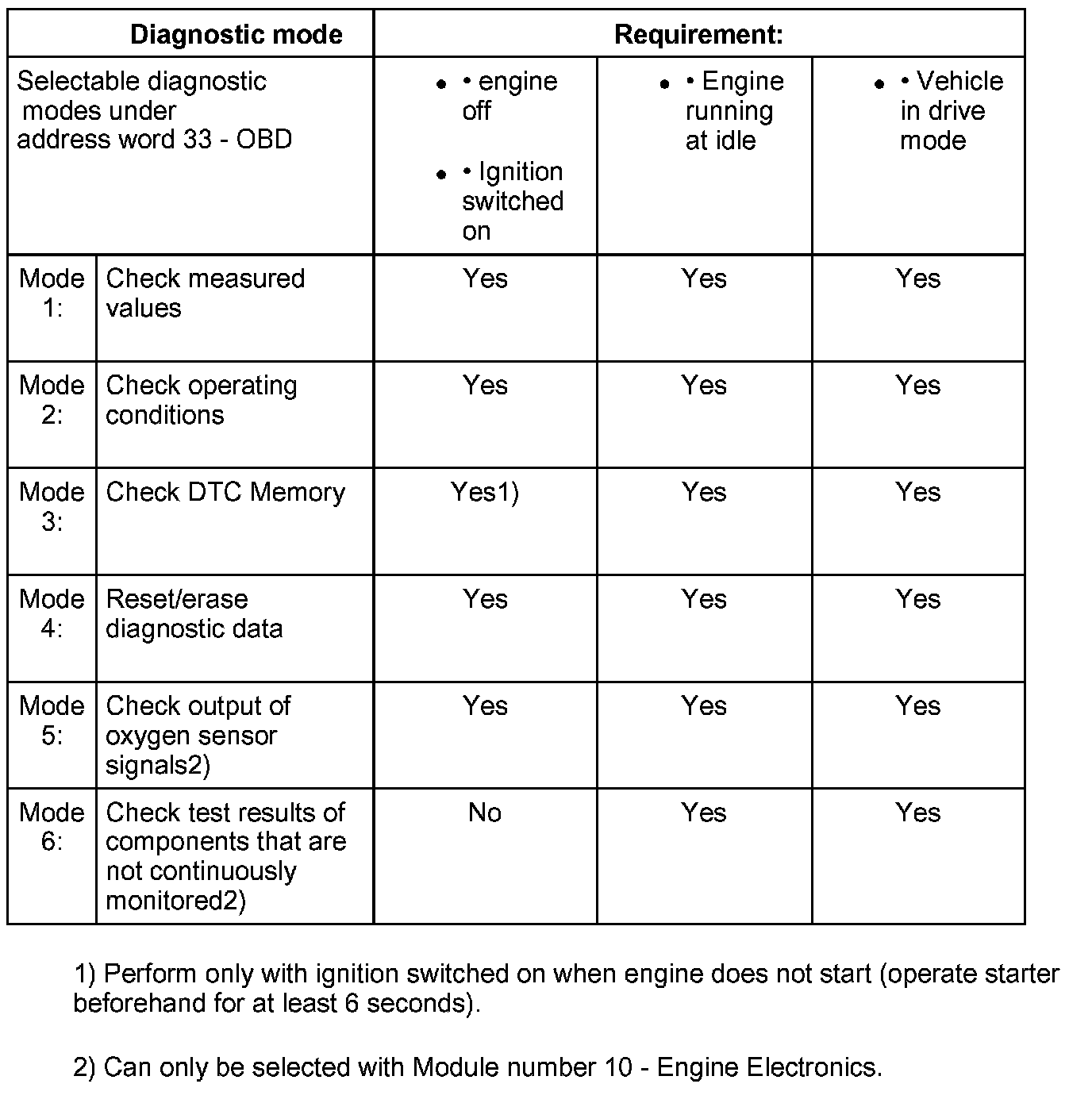

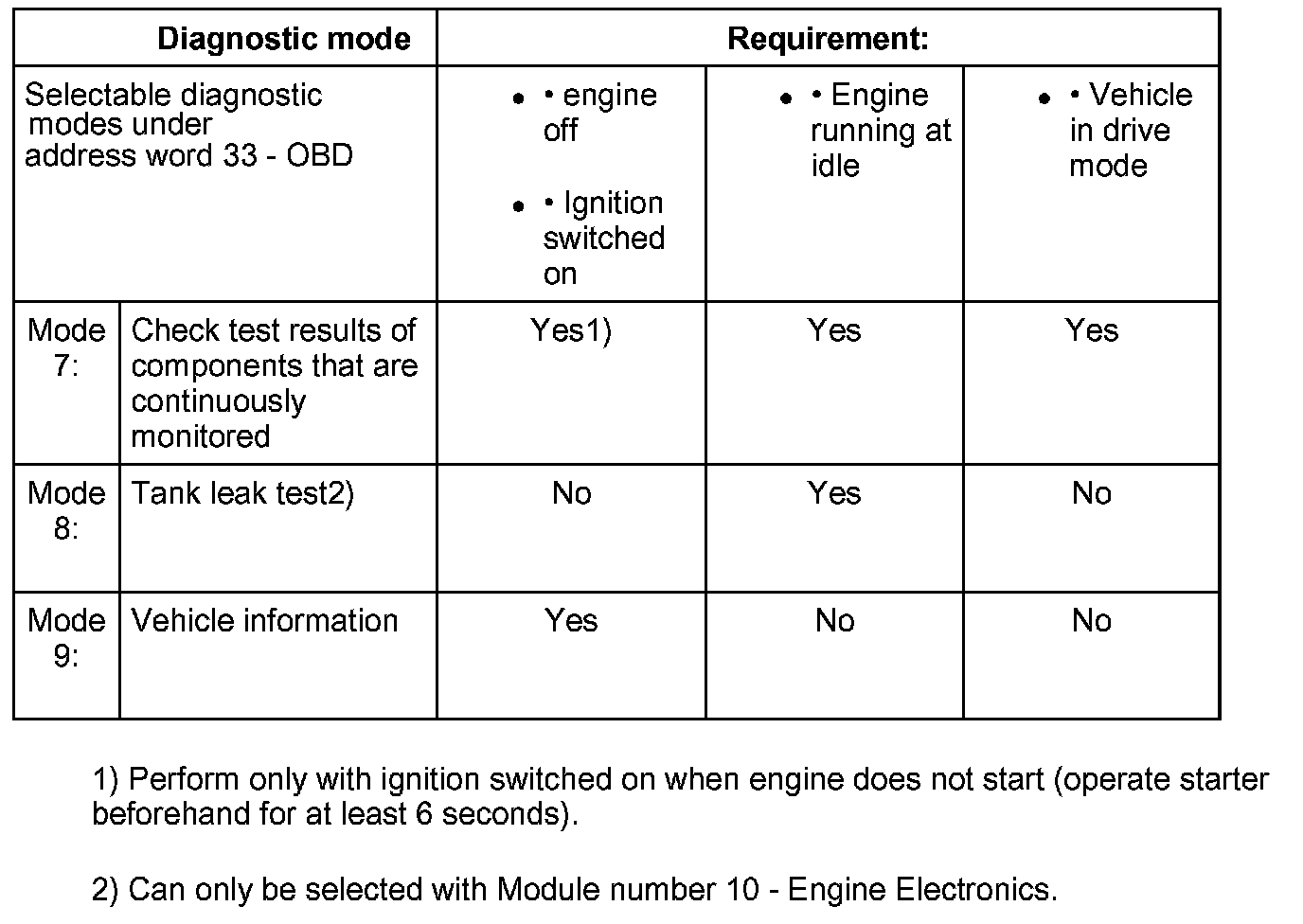

Selectable diagnostic modes under address word 33 - OBD

NOTE: The conditions required for selecting the desired diagnostic mode are listed in the following table:
