Upper Oil Pan Assembly Overview

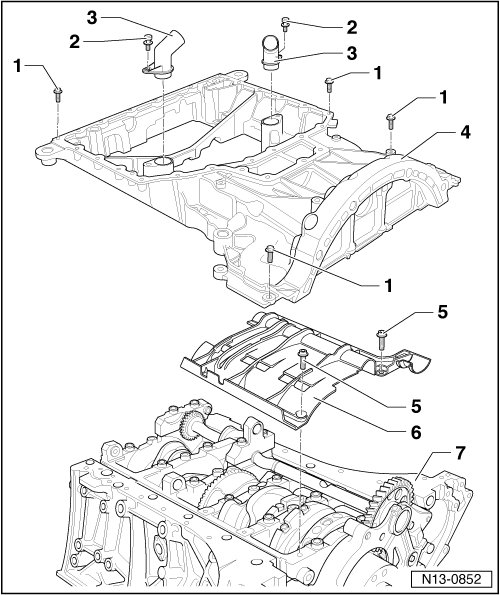

Upper Oil Pan Assembly Overview






1 8 Nm

2 8 Nm

3 Oil pipe

4 Oil pan, upper

5 10 Nm

6 Splash wall

7 Cylinder block

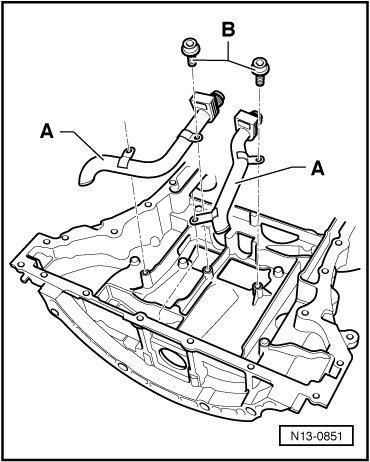

Oil Pipes in Upper Oil Pan





- Insert oil pipes - A - as shown in illustration and tighten bolts - B - to 8 Nm.
