Brake Line Separating Point, Underbody

Brake Line Separating Point, Underbody

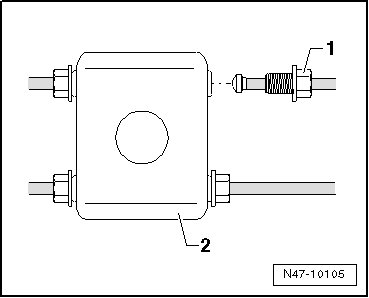

Old Connection





1. Tube fitting, 14 Nm

2. Connection, counter hold while tightening.

New Connection





1. Tube fitting, 14 Nm

2. Ring

3. Flare F

4. Flare E, not flareable

5. Nut, counter hold when tightening
