Front Bumper Bracket: Service and Repair

Bumper Bracket

CAUTION!
Observe safety precautions

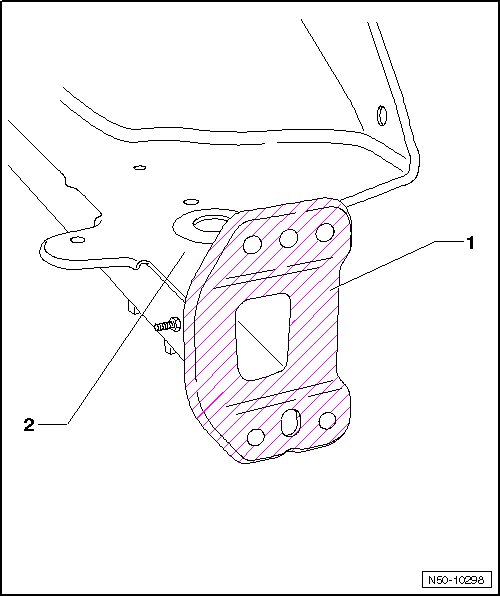

1 Bumper bracket

2 Longitudinal member with cover plate

Removing

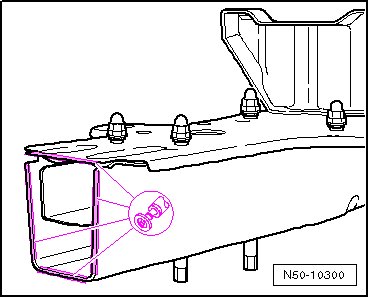

- Separate the original connection.

- Remove residual material.





Installing

Replacement part

• Front bumper bracket

- Align and secure new part with vehicle standing on wheels or alignment bracket set.





- Weld in bumper bracket, gas-shielded arc continuous weld seam.
