Measured Value (Data) Block, Reading (Function 08)
>>
Evaluating Measured Value Blocks
>>

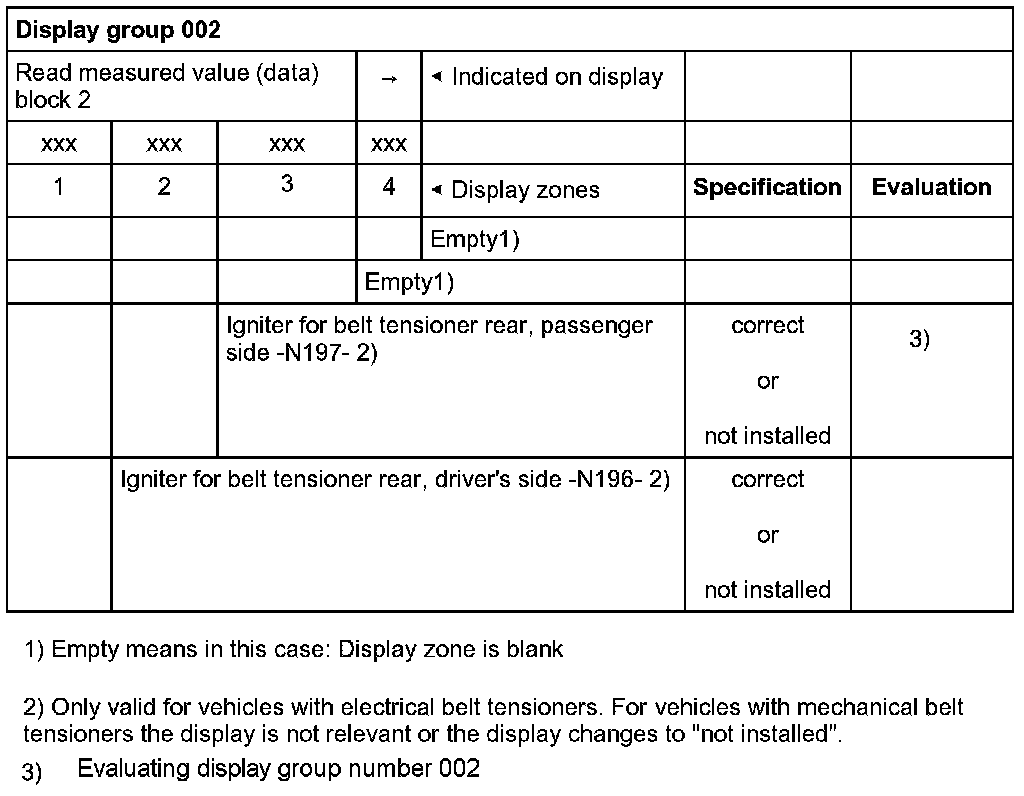

Display Group 002
Display Group 002
Display Group 002

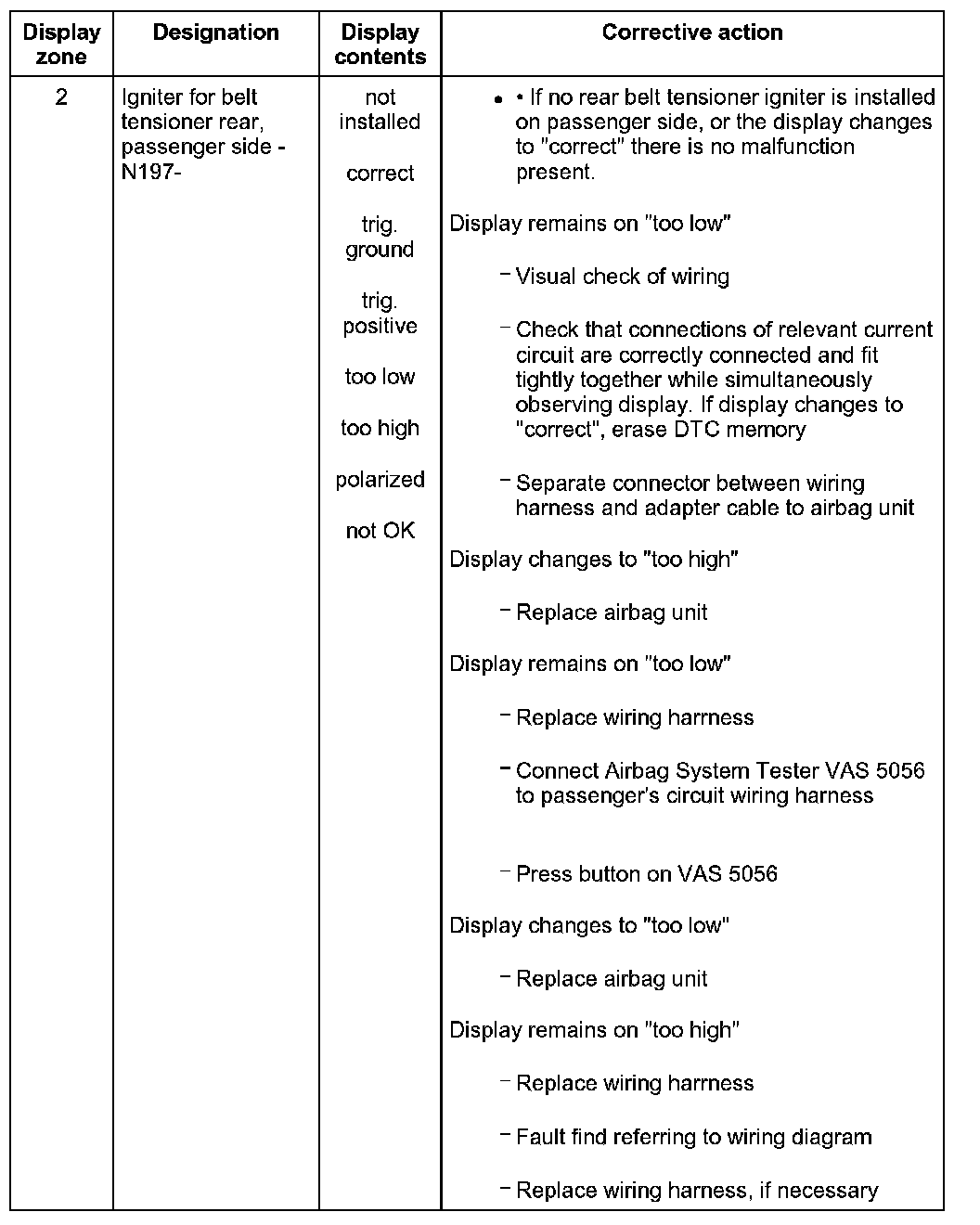

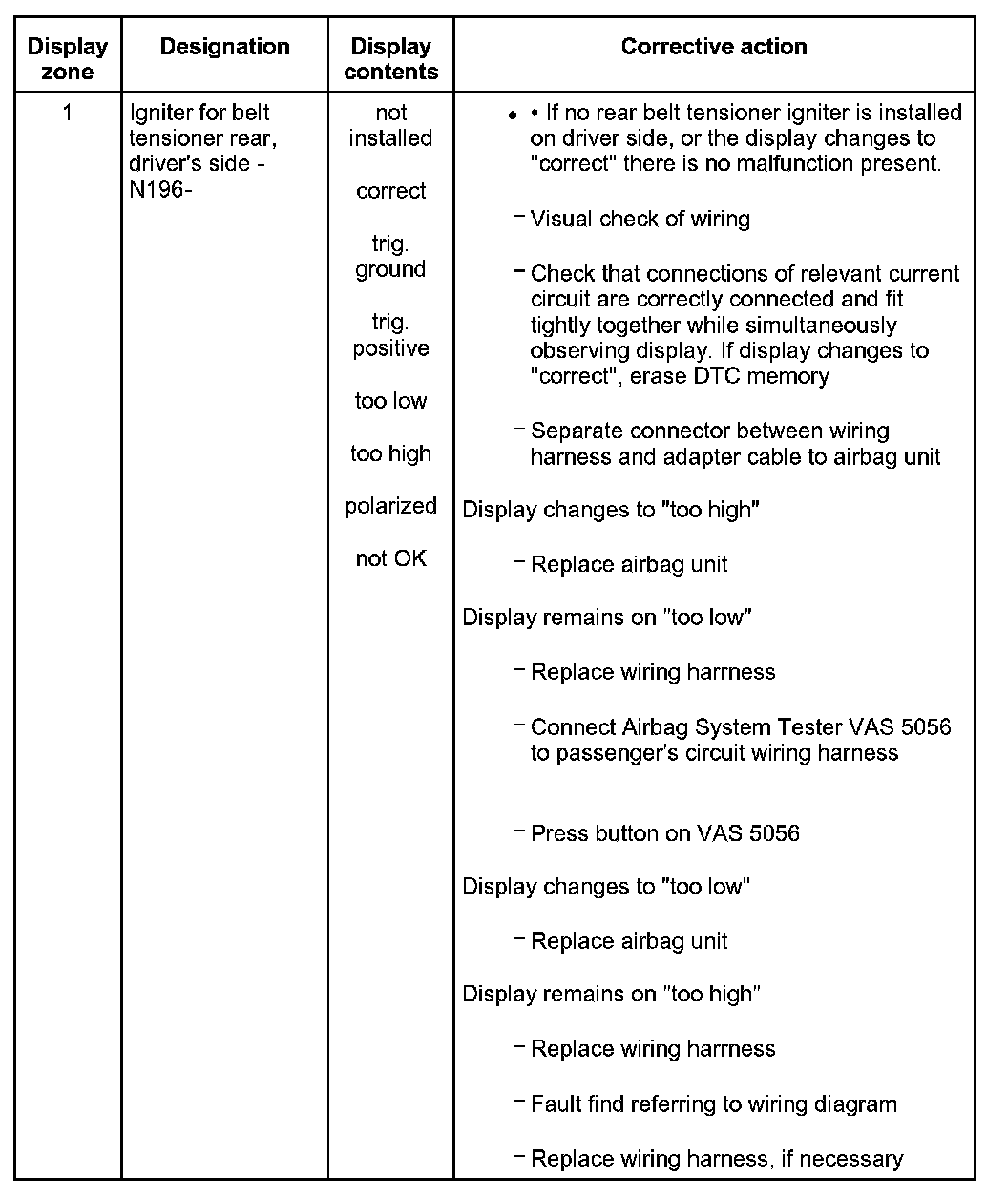

Evaluating display group number 002
