Home
>>
Volkswagen
>>
2006
>>
New Beetle (1C1) L5-2.5L (BPR)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Measured Value (Data) Block, Reading (Function 08)
>>
Evaluating Measured Value Blocks
>>

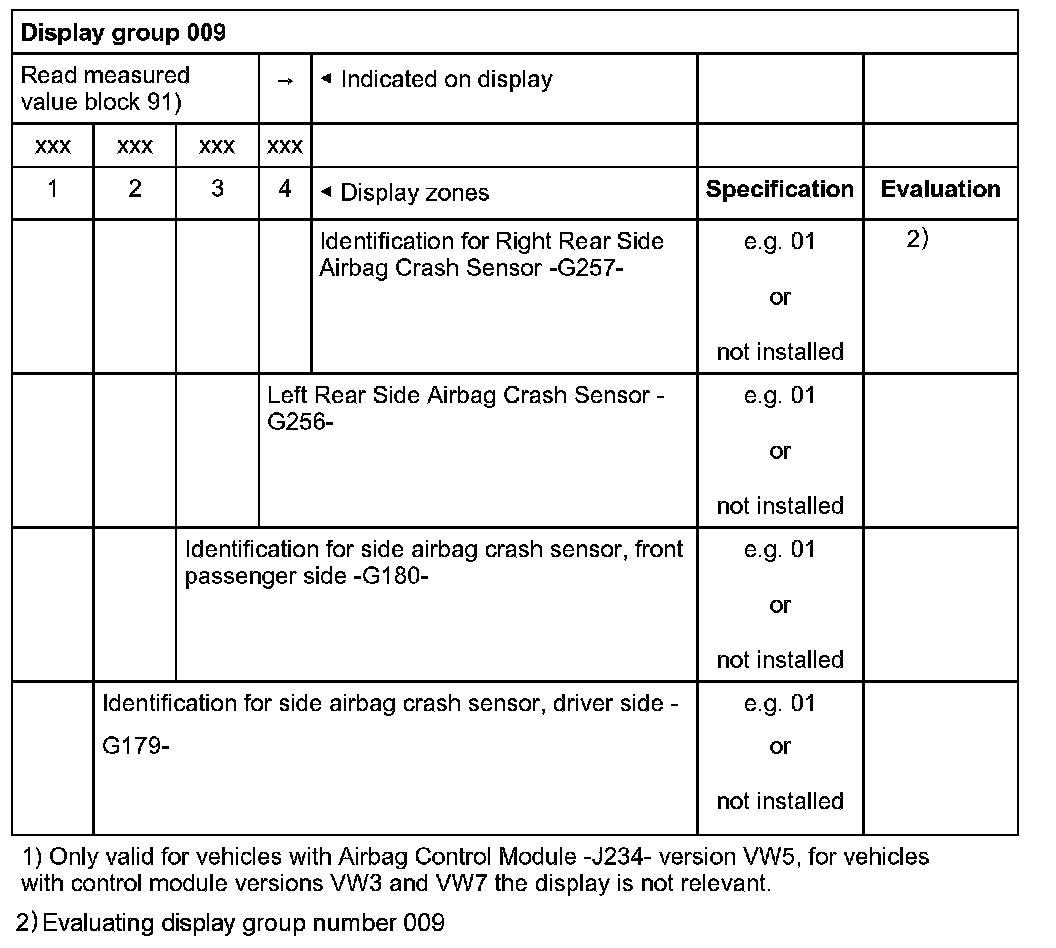

Display Group 009
Display Group 009
Display Group 009

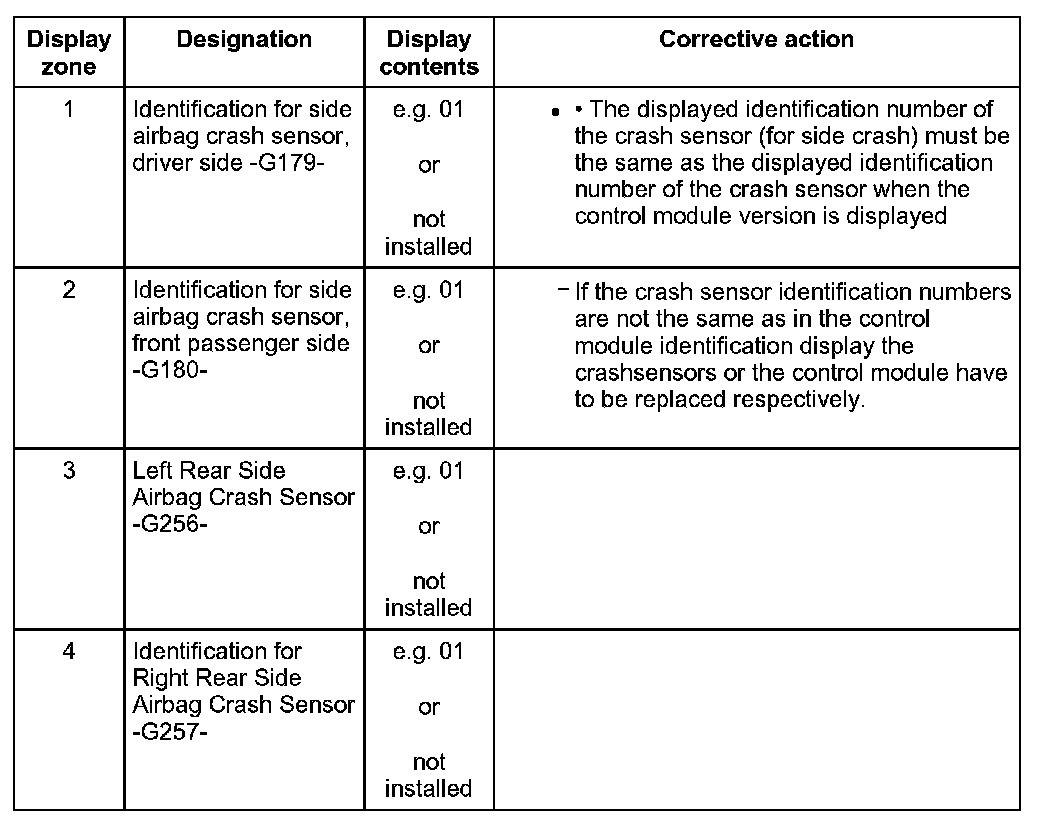

Evaluating display group number 009
