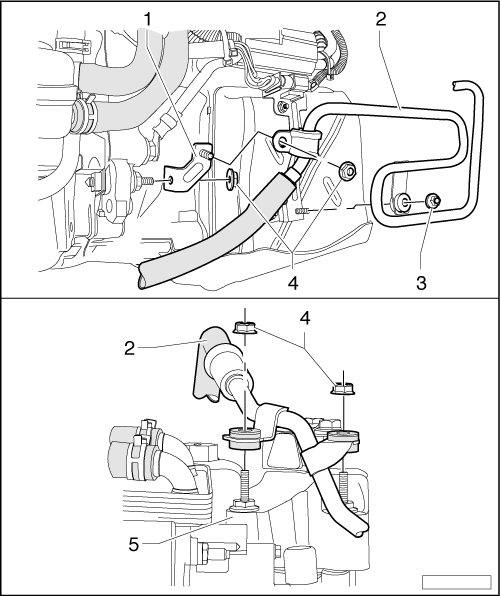

Pressurized Line and Return Hose Overview

Pressurized Line and Return Hose Overview





1 Bracket

2 Pressurized line

3 Hex nut

• Tightening specification => [ Pressurized Line to DSG Transmission 02E ] Pressurized Line Mount to Transmission Tightening Specifications.

• M6

4 Hex nut

• Tightening specification => [ Pressurized Line to DSG Transmission 02E ] Pressurized Line Mount to Transmission Tightening Specifications.

• M8

5 Transmission bracket
