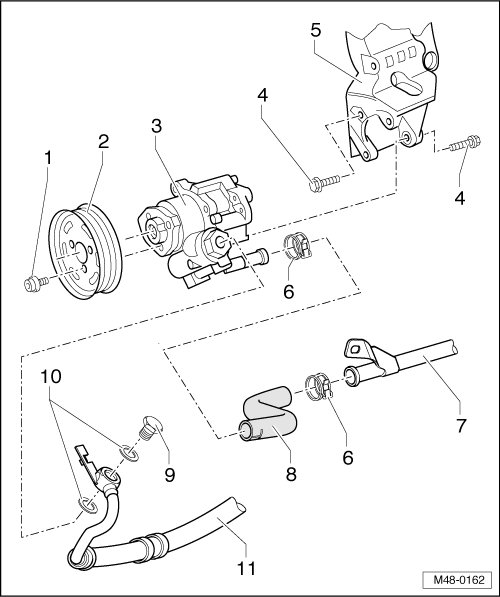

Pressurized Line and Intake Hose to Power Steering Pump Overview

Pressurized Line and Intake Hose to Power Steering Pump Overview





1 Socket head bolt

• M8 x 14

• Tightening specification => [ Pressurized Line to DSG Transmission 02E ] Pressurized Line Mount to Transmission Tightening Specifications.

2 Belt pulley

3 Power steering pump

• Checking delivery pressure => [ Low Mounted Power Steering Pump, Checking Delivery Pressure ] Low Mounted Power Steering Pump, Checking Delivery Pressure.

• Before installing, fill with power steering fluid => Low Mounted Power Steering Pump.

4 Hex bolt

• M8 x 40

• Tightening specification => [ Pressurized Line to DSG Transmission 02E ] Pressurized Line Mount to Transmission Tightening Specifications.

5 Bracket

• On cylinder block

6 Spring clip

7 Intake line

8 Intake hose

9 Banjo fitting

• M16 x 1.5

• Tightening specification => [ Pressurized Line to DSG Transmission
02E ] Pressurized Line Mount to Transmission Tightening Specifications.

10 Seals

• Replace

11 Pressurized line
