1.9L TDI and TDI PD With A/C

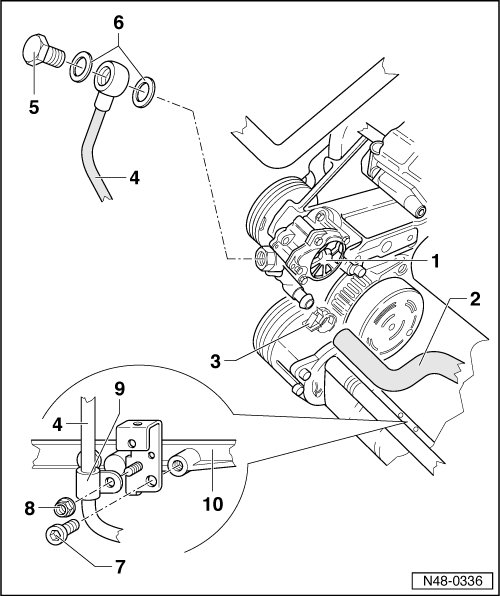

Pressurized Line and Intake Hose Overview





1 Power steering pump

• Checking delivery pressure => [ High Mounted Power Steering Pump, Checking Delivery Pressure ] High Mounted Power Steering Pump, Checking Delivery Pressure.

• Before installing, fill with power steering fluid => [ High Mounted Power Steering Pump ] High Mounted Power Steering Pump.

2 Intake hose

3 Spring clip

4 Pressurized line

5 Banjo fitting

• M16 x 1.5

• Tightening specification => [ Pressurized Line/Intake Hose TDI
Engines ] Pressurized Line/Intake Hose to Engine Tightening Specifications.

6 Seals

• Replace

7 Socket head bolt

• M10 x 30

• Tightening specification => [ Pressurized Line/Intake Hose TDI
Engines ] Pressurized Line/Intake Hose to Engine Tightening Specifications.

8 Hex nut

• M8

• Tightening specification => [ Pressurized Line/Intake Hose TDI
Engines ] Pressurized Line/Intake Hose to Engine Tightening Specifications.

9 Clamp

10 Cylinder block
