1.9L TDI PD

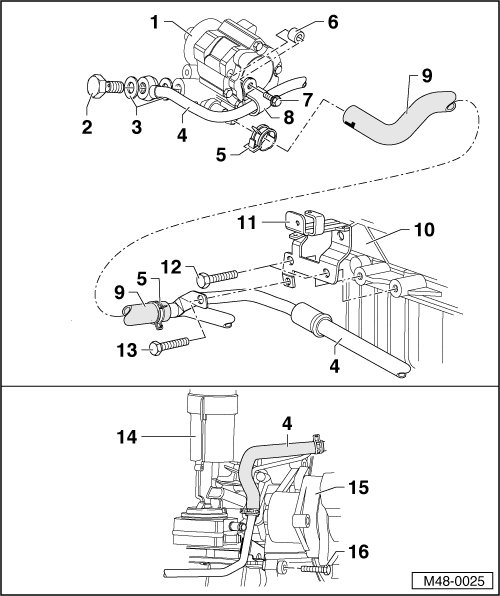

Pressurized Line and Intake Hose Overview





1 Power steering pump

• Checking delivery pressure => [ Low Mounted Power Steering Pump, Checking Delivery Pressure ] Low Mounted Power Steering Pump, Checking Delivery Pressure.

• Before installing, fill with power steering fluid => Low Mounted Power Steering Pump.

2 Banjo fitting

• M16 x 1.5

• Tightening specification => [ Pressurized Line/Intake Hose TDI
Engines ] Pressurized Line/Intake Hose to Engine Tightening Specifications.

3 Seals

• Replace

4 Pressurized line

5 Spring clip

6 Socket

• Only for power steering pumps manufactured by Kayaba

7 Hex bolt

• M8 x 28

• Tightening specification => [ Pressurized Line/Intake Hose TDI
Engines ] Pressurized Line/Intake Hose to Engine Tightening Specifications.

8 Clamp

9 Intake hose

10 Cylinder block

11 Bracket

12 Hex bolt

• M10 x 25

• Tightening specification => [ Pressurized Line/Intake Hose TDI
Engines ] Pressurized Line/Intake Hose to Engine Tightening Specifications.

13 Hex bolt

• M8 x 20

• Tightening specification => [ Pressurized Line/Intake Hose TDI
Engines ] Pressurized Line/Intake Hose to Engine Tightening Specifications.

14 Oil filter housing

15 Transmission

16 Hex bolt

• M10 x 55

• M10 x 50 (DSG transmission 02E only)

• Tightening specification => [ Pressurized Line/Intake Hose TDI
Engines ] Pressurized Line/Intake Hose to Engine Tightening Specifications.
