Pressurized Line Overview

Pressurized Line Overview

Vehicles With 1.8L and 2.0L Engines





1 Pressurized line

2 Clamp

3 Hex nut

• M8

• Tightening specification => [ Pressurized Line to Automatic Transmission 01M ] Pressurized Line Mount to Transmission Tightening Specifications.

4 Bracket

• Install parallel to direction of travel

5 Intake hose

6 Oil filter housing

7 Bracket

8 Hex bolt

• M10 x 40

• Tightening specification => [ Pressurized Line to Automatic Transmission 01M ] Pressurized Line Mount to Transmission Tightening Specifications.

9 Hex bolt

• M8 x 28

• Tightening specification => [ Pressurized Line to Automatic Transmission 01M ] Pressurized Line Mount to Transmission Tightening Specifications.

10 Mounting bolt on starter

11 Bracket

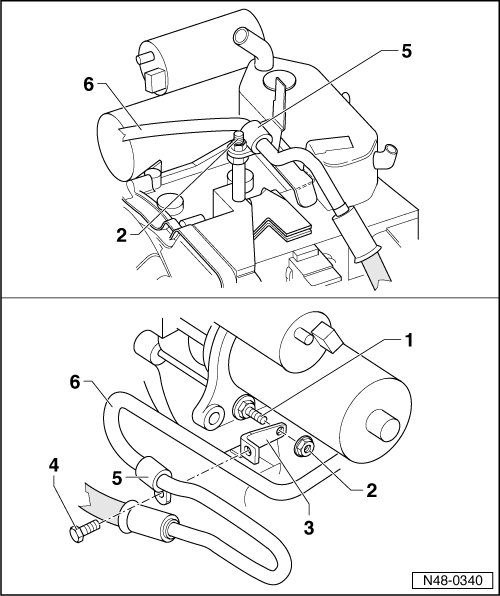

Vehicles With 1.9L TDI Engine





1 Mounting bolt on starter

2 Hex nut

• M8

• Tightening specification => [ Pressurized Line to Automatic Transmission 01M ] Pressurized Line Mount to Transmission Tightening Specifications.

3 Bracket

4 Hex bolt

• M8 x 28

• Tightening specification => [ Pressurized Line to Automatic Transmission 01M ] Pressurized Line Mount to Transmission Tightening Specifications.

5 Clamp

6 Pressurized line
