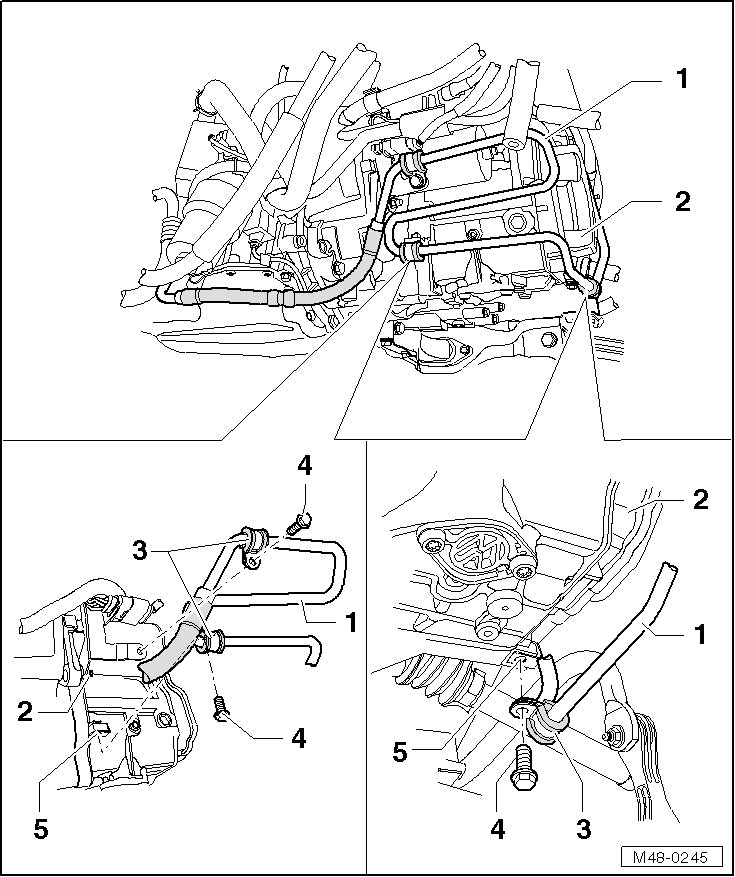

Pressurized Line Mount Overview

Pressurized Line Mount Overview





1 Pressurized line

2 5 speed manual transmission 0A4

3 Clamp

4 Hex bolt

• M8 x 28

• Tightening specification => [ Pressurized Line to Manual
Transmission 0A4 ] Pressurized Line Mount to Transmission Tightening Specifications.

5 Speed nut
