1.9L TDI PD With DSG Transmission 02E

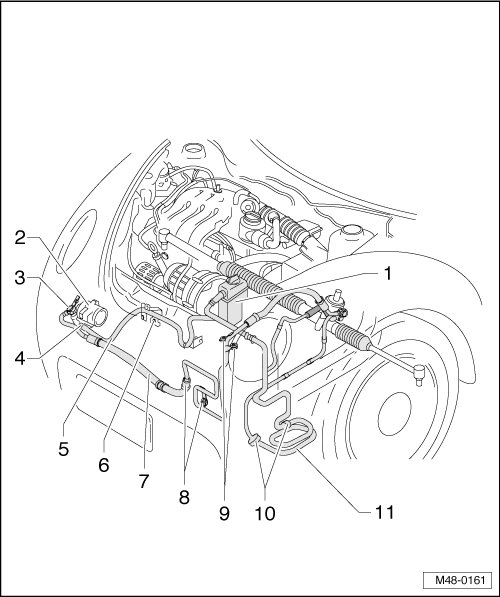

Power Steering System Overview

Assembly notes for pressurized line and intake hose on power steering pump => [ Pressurized Line and Intake Hose to Power Steering Pump Overview ] Pressurized Line and Intake Hose to Power Steering Pump Overview.

Assembly notes for pressurized line and intake hose on DSG transmission 02E => [ Pressurized Line and Return Hose Overview ] Pressurized Line and Return Hose Overview.





1 Refill tank

2 Power steering pump

• Checking delivery pressure => [ Low Mounted Power Steering Pump, Checking Delivery Pressure ] Low Mounted Power Steering Pump, Checking Delivery Pressure.

• Before installing, fill with power steering fluid => [ Low Mounted Power Steering Pump ] Low Mounted Power Steering Pump.

3 Pressurized line mount

• On power steering pump

4 Intake hose mount

• On power steering pump

5 Intake hose

6 Intake hose mount

• On cylinder block

7 Pressurized line

8 Pressurized line mount

On DSG transmission 02E

• Assembly notes => [ Pressurized Line and Return Hose Overview ] Pressurized Line and Return Hose Overview.

9 Return hose mount

On DSG transmission 02E

10 Pressurized line mount

On transmission bracket

• Assembly notes => [ Pressurized Line and Return Hose Overview ] Pressurized Line and Return Hose Overview.

11 Return hose
