1.8L, 2.0L, 1.9L TDI and TDI PD

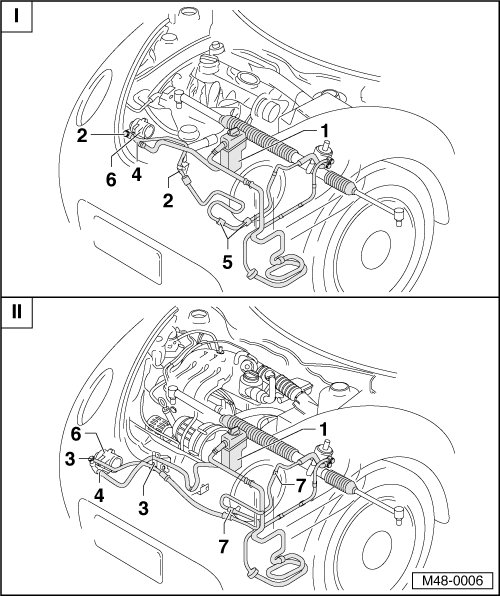

Power Steering System Overview
I - Vehicles with high mounted power steering pump
II - Vehicles with low mounted power steering pump
1 Refill tank
• Assembly notes => [ Power Steering Reservoir Assembly Overview ] Service and Repair.
2 Pressurized line mount
Vehicles with TDI engine and A/C system
• Assembly notes => [ Pressurized Line and Intake Hose Overview ] Pressurized Line and Intake Hose Overview.
3 Pressurized line mount
Vehicles with 2.0L and TDI engines without A/C system
Vehicles with 1.8L engine with A/C system
• Assembly notes => [ Pressurized Line and Intake Hose Overview ] Pressurized Line and Intake Hose Overview.
Vehicles with 2.0L engine with A/C system
Vehicles with 1.8L engine without A/C system
• Assembly notes => [ Pressurized Line and Intake Hose Overview ] Pressurized Line and Intake Hose Overview.
4 Intake hose mount
5 Pressurized line mount
On 5 speed manual transmission 02J
• Assembly notes => [ Pressurized Line Mount Overview ] Pressurized Line Mount Overview.
On 5 speed manual transmission 0A4
• Assembly notes => [ Pressurized Line Mount Overview ] Pressurized Line Mount Overview.
On 6 speed manual transmission 02M
• Assembly notes => [ Pressurized Line Overview ] Pressurized Line Overview.
6 Power steering pump
• Checking delivery pressure at low mounted power steering pump => [ Low Mounted Power Steering Pump, Checking Delivery Pressure ] Low Mounted Power Steering Pump, Checking Delivery Pressure.
• Checking delivery pressure at high mounted power steering pump => [ High Mounted Power Steering Pump, Checking Delivery Pressure ] High Mounted Power Steering Pump, Checking Delivery Pressure.
• Before installing, fill with oil at low mounted power steering pump => [ Low Mounted Power Steering Pump ] Low Mounted Power Steering Pump.
• Before installing, fill with oil at high mounted power steering pump => [ High Mounted Power Steering Pump ] High Mounted Power Steering Pump.
7 Pressurized line mount
On automatic transmission 01M
• Assembly notes => [ Pressurized Line Overview ] Pressurized Line Overview.
