Home >> Volkswagen >> 2006 >> Jetta Sedan (1K2) L4-2.0L Turbo (BPY) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Piston Ring, Engine

Piston Ring, Engine

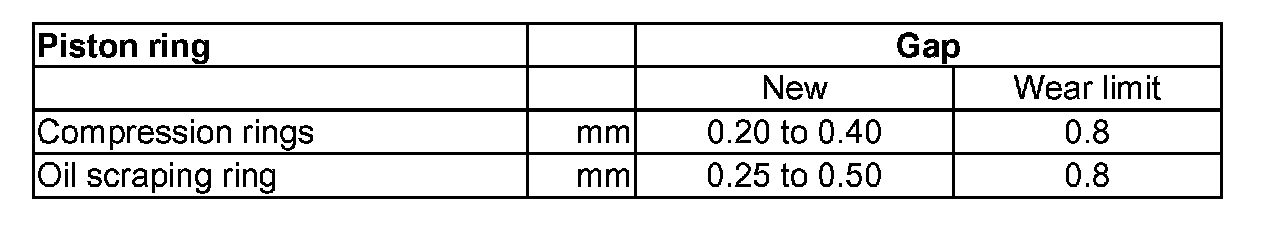

Piston Ring Gaps

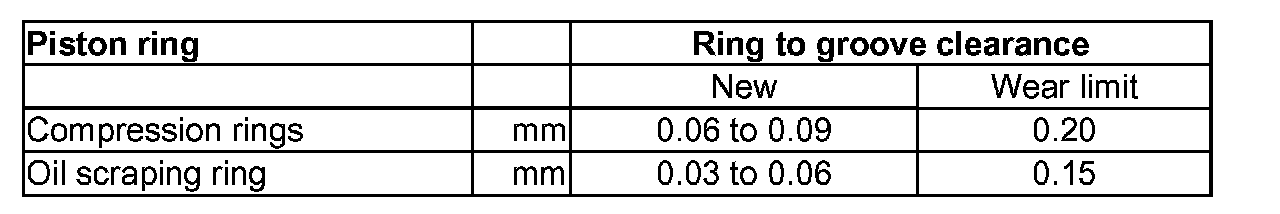

Ring To Groove Clearance
