Side Window, Assembly Overview

Side Window, Assembly Overview

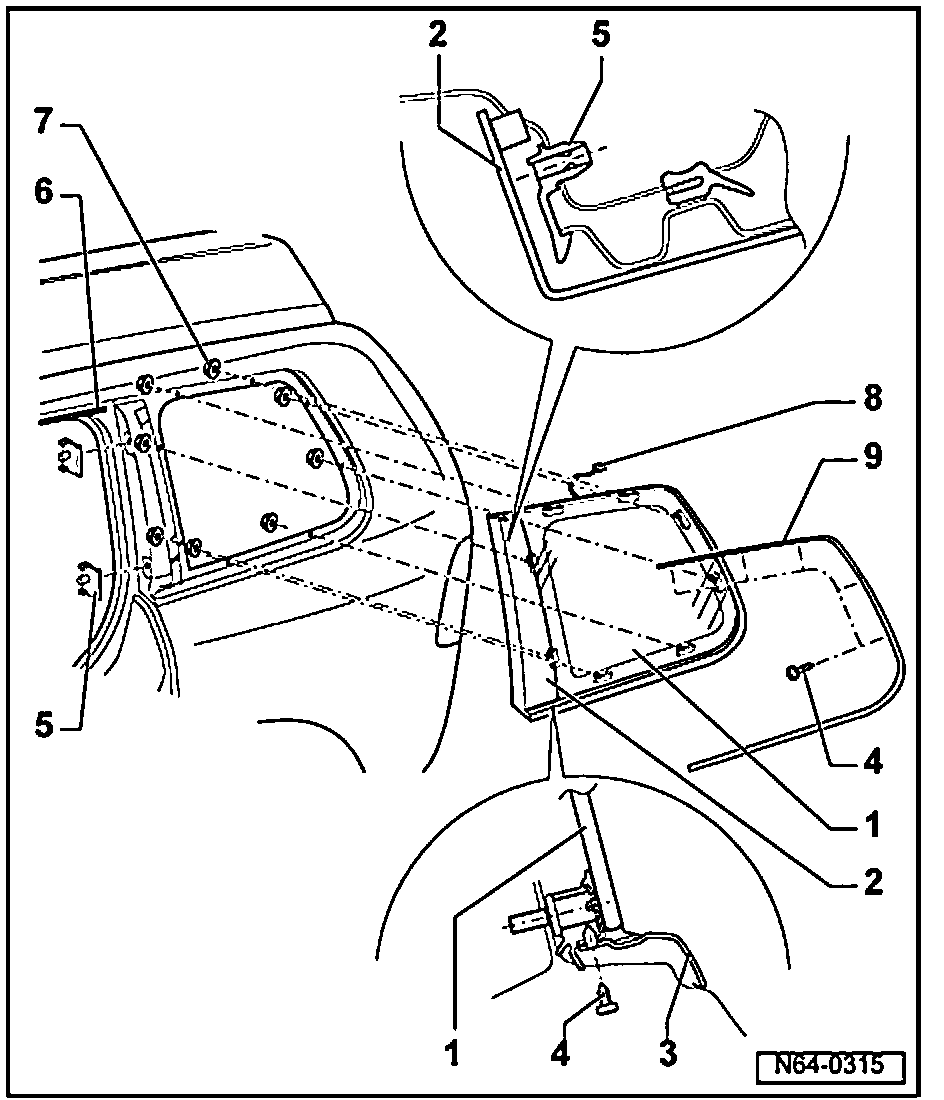

1. Side window
- To remove side window, the headliner must first be removed
2. C-pillar trim
- Trim is part of side window and is not to be replaced separately.
3. Trim strip
4. Bolt
- Qty. 8
5. Retaining clamp
6. Drip deflector
7. Flanged hex nut
- 4.5 Nm
- Be sure to comply with specified torque
8. Antenna connector
9. Trim strip
- Secured with bolt - 4 - on side window.
