Gear Oil Level In Transfer Case, Checking

Gear oil level in transfer case, checking

Special tools, testers and auxiliary items required

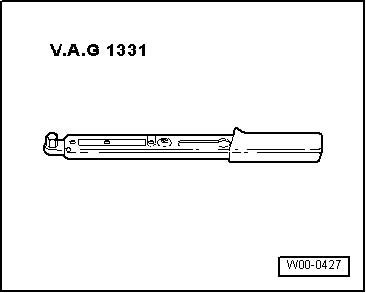

^ Torque wrench V.A.G 1331





- Remove sealing plug for gear oil inspection - arrow -.
Oil level is correct when the transfer case is filled up to lower edge of oil filler hole.
- Insert new plug - arrow - and fasten.

When initially filling transfer case:
- Remove plug - arrow -.
- Top off oil to lower edge of filler hole.
- Insert new plug - arrow - and fasten.

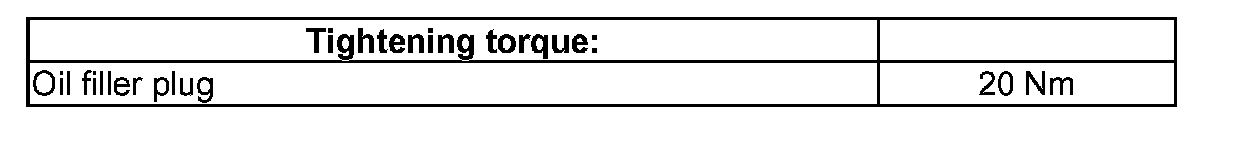

Tightening torque:
