Procedures

Disengage Selector Lever In Case Of Power Outage

Procedure

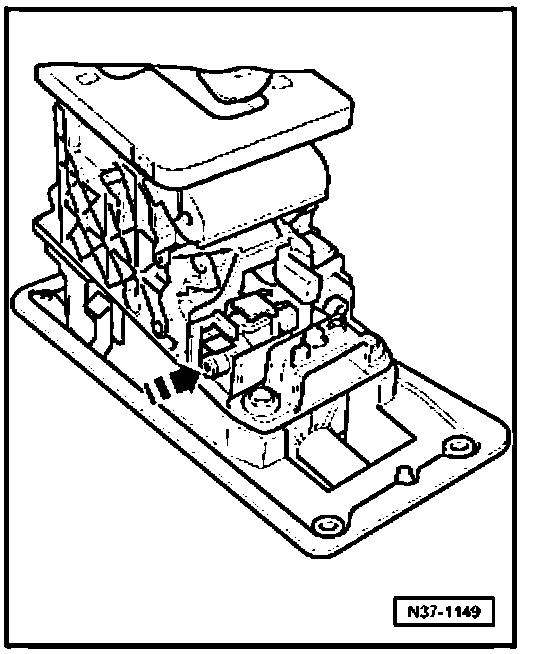

- To disengage, solenoid core must be moved in direction of (arrow).
This can be done from above using a narrow screwdriver.

NOTE:
- If there is no voltage at Selector Lever Park Position Solenoid -N380-, selector lever will be locked in -P- position.
- Selector Lever Park Position Lock Switch -F319- indicates to Access/Start Control Module -J518- that selector lever is in -P- position. If there is no signal, selector lever cannot be moved from selector lever position -P-.
