Starter Motor: Testing and Inspection

Starter B, Checking

Special tools, testers and auxiliary items required

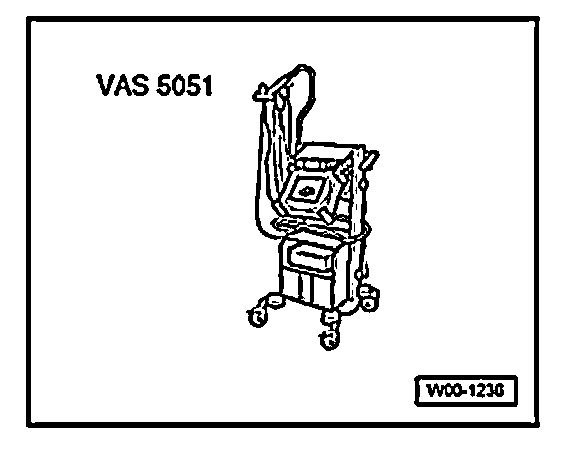

- Vehicle Diagnostic, Testing and Information System VAS 5051A







- Optional: Vehicle Diagnostic and Service System VAS 5052
- Diagnostic cable VAS 5051/6A

- Connect Vehicle Diagnostic, Testing and Information System VAS 5051A.

Select operating mode "Guided Fault Finding" on Vehicle Diagnostic, Testing and Information System VAS 5051A.

After the Diagnostic Trouble Code (DTC) memory of all control modules has been checked:

- Using the "Go To" button, select "Functions/Component selection" and the following menu options in sequence:
- Body
- Electrical Equipment
- 27 - Starter, power supply
- Electrical components
- Starter -B-

- Follow tester prompts.

- Or, in Vehicle Diagnostic, Testing and Information System VAS 5051A, select operating mode "Guided Functions"
- Body
- Electrical Equipment
- 27 - Starter, power supply
- Electrical components
- Starter -B-

- Follow tester prompts.
