Fuel Distributor: Service and Repair

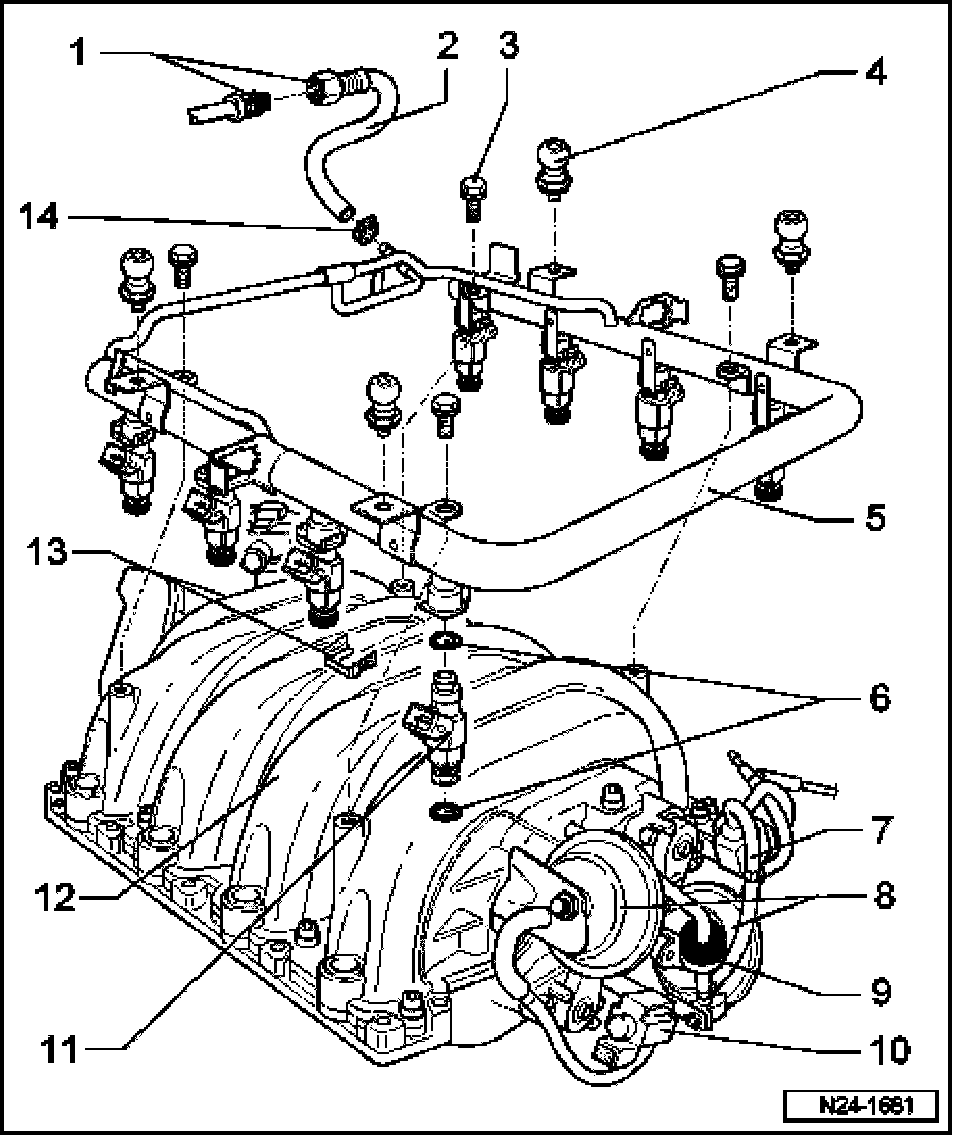

Fuel Distributor With Fuel Injectors, Disassembling And Assembling







1. Threaded connection, 22 Nm
- Counterhold when tightening
- For fuel supply
2. Fuel supply line
- Check for secure seating
- Secure with spring type clamp
3. 10 Nm
4. Ball pin, 3 Nm
- For engine cover
5. Fuel distributor
- With retaining straps for 3-pin harness connector of Knock Sensors (KS)
6. O-ring
- Always replace
- Lightly lubricate O-rings with clean engine oil before installing
7. Intake Manifold Tuning (IMT) Valve -2- -N261-
8. Vacuum actuator
- For intake manifold change-over
9. Check valve
- Installation position: black side of valve faces intake manifold connection
10. Intake Manifold Change-Over Valve -N156-
11. Cylinder 1 Fuel Injector -N30- to Cylinder 4 Fuel Injector -N33-, Cylinder 5 Fuel Injector -N83- to Cylinder 8 Fuel Injector -N86-
12. Intake manifold change-over
13. Retaining clip
- Make sure clip is correctly seated on fuel injector and fuel distributor
14. Spring clip
